Introduction to Coke Processing
Petroleum coke and calcined coke are essential materials in industries ranging from aluminum production to steel manufacturing and energy generation. The grinding of these materials is a critical step that directly impacts downstream processing efficiency and final product quality. Selecting the right grinding mill for coke processing requires a thorough understanding of material characteristics, desired fineness, production capacity, and operational costs. This article provides a comprehensive guide to choosing the optimal grinding equipment for petroleum coke and calcined coke, highlighting key considerations and introducing advanced solutions from our company.
Understanding Petroleum Coke and Calcined Coke
Petroleum coke is a carbonaceous solid derived from oil refinery coker units. It comes in various forms, including sponge coke, shot coke, and needle coke, each with distinct hardness and structure. Calcined coke is produced by heating green petroleum coke to high temperatures (around 1200-1400°C) to remove volatile matter and increase density and electrical conductivity. These differences in composition and hardness significantly influence the choice of grinding mill.
For instance, green petroleum coke tends to be softer and more easily ground, while calcined coke is harder and more abrasive, requiring robust grinding elements and higher grinding forces. Additionally, the moisture content, bulk density, and flowability of the material affect the selection of the feeding system and the overall mill design.
Key Factors in Choosing a Grinding Mill for Coke
When selecting a grinding mill for petroleum coke or calcined coke, consider the following factors:
- Fineness Requirement: The desired particle size distribution is paramount. For applications like anode production for aluminum, a typical fineness ranges from 200 to 325 mesh (75 to 45 microns). For fuel applications, coarser grinding may suffice. Ultrafine grinding (down to 5 microns) may be needed for specialized carbon products.
- Capacity: Production scale dictates the mill size. From a few tons per hour to over 100 tons per hour, the mill must match the required throughput without compromising efficiency.
- Material Hardness and Abrasiveness: Calcined coke is abrasive and can cause wear on grinding components. Mills with wear-resistant materials (e.g., high-chrome rollers and rings) are essential for long service life.
- Energy Efficiency: Grinding is energy-intensive. Mills that offer lower energy consumption per ton of product can significantly reduce operating costs.
- Maintenance and Reliability: Easy maintenance and minimal downtime are critical for continuous production. Designs that allow quick replacement of wear parts and have robust construction are preferred.
- Environmental Compliance: Dust emissions and noise levels must be controlled to meet environmental regulations. Efficient dust collection systems and soundproofing are important.
- Cost: Both initial investment and total cost of ownership (including energy, maintenance, and wear parts) should be evaluated.
Types of Grinding Mills Suitable for Coke
Several types of grinding mills are commonly used for coke processing, each with its own advantages and limitations:
1. Ball Mills
Ball mills are traditional and widely used for grinding coke. They can handle large capacities and produce fine powders. However, they are energy-intensive and have high wear rates, especially with abrasive calcined coke. They are suitable for coarse to medium-fine grinding (down to 0.074mm) but are less efficient for ultrafine grinding.
2. Raymond Mills (Pendulum Mills)
Raymond mills, also known as pendulum mills, are popular for grinding petroleum coke to finenesses between 30 and 325 mesh. They are more energy-efficient than ball mills and offer good control over particle size. Our MRN Pendulum Mill is an advanced version with thin oil lubrication, efficient collector, and pulse dust collector, making it a reliable choice for coke grinding.
3. Vertical Roller Mills

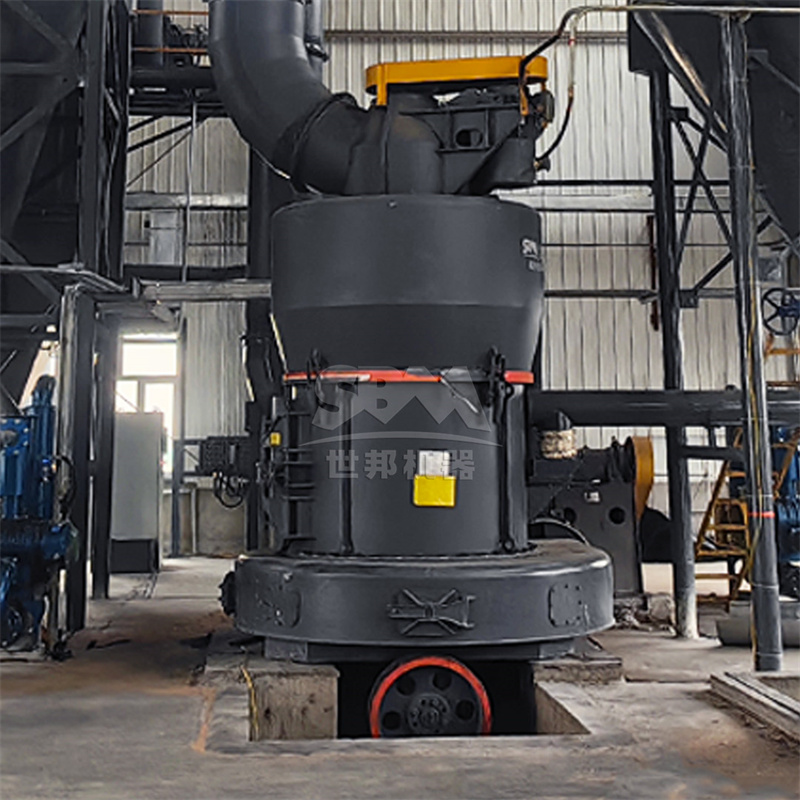

Vertical roller mills (VRMs) are increasingly favored for coke grinding due to their high efficiency and ability to handle high capacities. They integrate crushing, grinding, and classification, reducing floor space and energy consumption. Our LM Series Vertical Roller Mill is designed for capacities up to 250 t/h and fineness up to 600 mesh, making it ideal for large-scale coke processing. It features low operating costs, intelligent control, and environmental compliance.
4. Ultrafine Mills

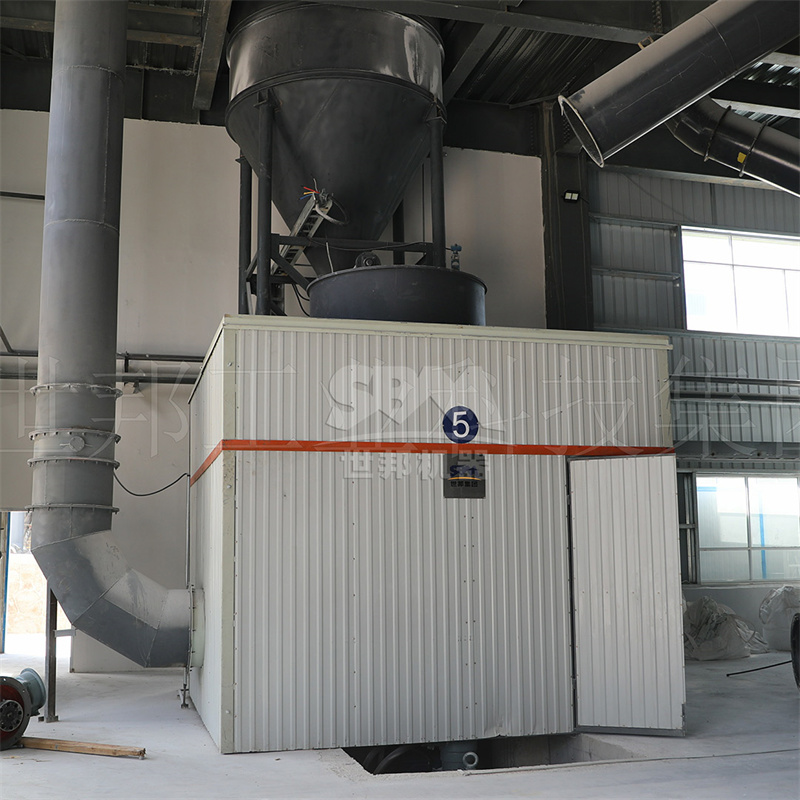

For ultrafine grinding of coke (down to 5-45 microns), ultrafine mills such as the SCM Series Ultrafine Mill are recommended. These mills use high-precision classification to ensure uniform particle size and are highly efficient. The SCM Series offers capacities from 0.5 to 25 t/h and fineness from 325 to 2500 mesh, with features like intelligent control, durable rollers, and eco-friendly operation.
Recommended Products for Coke Grinding
Based on our extensive experience in coke processing, we recommend the following two products for their exceptional performance and reliability:
SCM Series Ultrafine Mill
The SCM Series Ultrafine Mill is a perfect choice for producing ultrafine coke powder. With a fineness range of 325-2500 mesh and capacity of 0.5-25 t/h, it is suitable for both small and large-scale operations. Its technical advantages include:
- High Efficiency & Energy Saving: Capacity is twice that of jet mills with 30% lower energy consumption. Intelligent control with automatic finished product granularity feedback ensures consistent quality.
- High-Precision Classification: Vertical turbine classifier achieves precise particle size cutting, preventing coarse powder mixing.
- Durable Design: Special material rollers and rings extend service life several times over. The shaftless screw grinding chamber ensures stable operation.
- Eco-friendly & Low Noise: Pulse dust collection efficiency exceeds international standards, and soundproof room design keeps noise levels low.
Working Principle: The main motor drives three layers of grinding rings to rotate. Materials are dispersed into the grinding path by centrifugal force, crushed by roller pressure, and ground layer by layer. Finally, powder collection is completed by a cyclone collector and a pulse dust removal system.
Models: SCM800 (0.5-4.5t/h, 75kW), SCM900 (0.8-6.5t/h, 90kW), SCM1000 (1.0-8.5t/h, 132kW), SCM1250 (2.5-14t/h, 185kW), SCM1680 (5.0-25t/h, 315kW).
LM Series Vertical Roller Mill
For high-capacity coke grinding, the LM Series Vertical Roller Mill is an excellent solution. It offers capacities from 3 to 250 t/h and fineness from 30 to 325 mesh (up to 600 mesh for special models). Its key features include:
- Integrated Design: System integrates crushing, grinding, and selection; floor space reduced by 50%. Outdoor installation possible, reducing infrastructure costs by 40%.
- Low Operating Cost: Non-contact design between rollers and table; wear part life increased by 3x. Energy consumption 30-40% lower than ball mill systems.
- Intelligent Control: Expert-level auto-control system supporting remote/local switching. Real-time monitoring of parameters reduces manual intervention.
- Environmental Compliance: Fully sealed negative pressure operation; dust emission is minimal. Operating noise is low.
Working Principle: The main motor drives the grinding table via a reducer. Materials enter through the central feed port and spread evenly via centrifugal force. Grinding rollers apply pressure to crush the material layer; qualified fines are carried by hot air to the classifier, while coarse powder returns to the table for re-grinding.
Models: LM130K (10-28t/h, 200kW), LM150K (13-38t/h, 280kW), LM170K (18-48t/h, 400kW), LM190K (23-68t/h, 500kW), LM220K (36-105t/h, 800kW), LM280K (50-170t/h, 1250kW).
Comparison and Selection Guide
To aid in the selection process, consider the following comparison between the SCM Series Ultrafine Mill and the LM Series Vertical Roller Mill:
| Criteria | SCM Series Ultrafine Mill | LM Series Vertical Roller Mill |
|---|---|---|
| Fineness Range | 325-2500 mesh | 30-325 mesh (up to 600 mesh) |
| Capacity Range | 0.5-25 t/h | 3-250 t/h |
| Energy Consumption | Low (30% lower than jet mills) | Very low (30-40% lower than ball mills) |
| Wear Parts Life | Several times longer due to special materials | 3x longer due to non-contact design |
| Footprint | Compact | Small (50% less than ball mill systems) |
| Control System | Intelligent with automatic feedback | Expert-level auto-control, remote monitoring |
| Environmental Impact | Pulse dust collection, soundproof | Negative pressure, low dust and noise |
| Best For | Ultrafine grinding, small to medium capacity | Large capacity, coarse to fine grinding |
For ultrafine coke powder production (e.g., for specialty carbon products), the SCM Series is ideal. For large-scale coke grinding for fuel or anode production, the LM Series offers superior capacity and energy efficiency.
Case Studies and Applications
Our grinding mills have been successfully applied in numerous coke processing projects worldwide. For example, a leading aluminum producer in China uses our LM Series Vertical Roller Mill to grind calcined coke to 200 mesh for anode production. The mill has been running reliably for over three years, with minimal maintenance and energy savings of 35% compared to their previous ball mill system.
Another case involves a petroleum coke gasification plant in the Middle East that required ultrafine grinding of petcoke to 800 mesh. They installed our SCM1680 Ultrafine Mill, which achieved a capacity of 10 t/h with precise particle size control, meeting the stringent requirements for gasifier feed.
Conclusion
Choosing the right grinding mill for petroleum coke and calcined coke is a decision that impacts operational efficiency, product quality, and profitability. By considering factors such as fineness, capacity, material properties, energy efficiency, and environmental compliance, you can select the optimal solution. Our SCM Series Ultrafine Mill and LM Series Vertical Roller Mill represent the pinnacle of grinding technology for coke processing, offering high efficiency, durability, and eco-friendly operation. Contact us today to discuss your specific requirements and let our experts help you find the perfect mill for your coke grinding application.
