Introduction
In the modern gold processing industry, the efficiency and fineness of ore grinding directly influence the subsequent recovery rates of gold extraction methods such as cyanidation, flotation, or gravity separation. Choosing the right grinding mill for your gold processing plant is therefore one of the most critical capital and operational decisions you will make. Gold ore powder production involves crushing, grinding, and classification stages. Among these, grinding is the most energy-intensive and determines the liberation size of gold particles from the gangue matrix. This article provides a professional guide to selecting the optimal grinding mill, with reference to our company’s proven equipment portfolio, including the SCM Series Ultrafine Mill and the MTW Series European Trapezium Mill, both of which have demonstrated exceptional performance in gold ore pulverizing circuits worldwide.
Key Factors in Choosing a Gold Ore Grinding Mill
1. Ore Characteristics and Hardness
Gold ores vary widely in hardness, abrasiveness, and moisture content. Free-milling ores may respond well to conventional ball mills, while refractory or sulfide-associated gold ores often require finer grinding to unlock encapsulated gold. The Bond Work Index (BWi) of your ore is a fundamental parameter. For hard ores with BWi above 14 kWh/t, high-pressure grinding rolls or vertical roller mills may offer energy advantages. Our LM Series Vertical Roller Mill, with its non-contact roller-table design, reduces wear and energy consumption by 30–40% compared to ball mills, making it suitable for hard gold ores.
2. Target Product Fineness
Gold liberation typically requires grinding to 75 µm (200 mesh) or finer, sometimes down to 25–45 µm for refractory ores. If your plant needs ultra-fine grinding (325–2500 mesh), the SCM Series Ultrafine Mill is an ideal choice. Its vertical turbine classifier achieves precise particle size cutting with no coarse powder mixing, ensuring uniform finished products. For standard fineness (30–325 mesh), the MTW Series European Trapezium Mill provides a robust and efficient solution with capacities up to 45 t/h.
3. Throughput and Scalability
Gold processing plants range from small-scale operations (a few tonnes per hour) to large mines exceeding 200 t/h. The LM Series Vertical Roller Mill offers capacities from 3 t/h up to 250 t/h, making it scalable for both pilot and full-scale production. The MTM Series Medium-speed Trapezium Mill covers 3–22 t/h, while the Ball Mill can reach 450 t/h for coarse grinding. Your choice should balance current needs with future expansion.
4. Energy Efficiency and Operating Cost
Grinding accounts for up to 50% of a gold plant’s energy consumption. The SCM Series Ultrafine Mill has twice the capacity of a jet mill with 30% lower energy consumption. The MTW Series features an integral bevel gear drive with 98% transmission efficiency and an optimized arc air duct that reduces airflow energy loss. These design improvements translate directly into lower cost per tonne of gold ore processed.
5. Environmental Compliance and Maintenance
Modern gold plants must comply with strict dust and noise regulations. The SCM Series Ultrafine Mill uses pulse dust collection that exceeds international standards and a soundproof room design. The MTW Series offers multi-stage dust collection and wear-resistant volute structure that reduces maintenance costs by 30%. The LM Series operates under fully sealed negative pressure with dust emission below 20 mg/m³. Additionally, the MRN Pendulum Mill features thin oil lubrication and a maintenance-free design, ideal for remote gold mining sites.
Recommended Equipment for Gold Ore Powder Production
SCM Series Ultrafine Mill (45–5 μm)
For gold ores requiring ultra-fine liberation, the SCM Series is the flagship choice. With input size ≤20 mm, output fineness of 325–2500 mesh, and capacity of 0.5–25 t/h, it delivers precise particle size control. Its intelligent control system provides automatic finished product granularity feedback, ensuring consistent quality. The shaftless screw grinding chamber ensures stable operation, while special material rollers and rings extend service life several times over. Models range from SCM800 (75 kW, 0.5–4.5 t/h) to SCM1680 (315 kW, 5–25 t/h). This mill is particularly effective for refractory gold ores where gold is finely disseminated in pyrite or arsenopyrite.
MTW Series European Trapezium Mill (600–45 μm)
For medium to large gold processing plants seeking a balance between capacity and fineness, the MTW Series is an excellent selection. With input size ≤50 mm, output fineness of 30–325 mesh, and capacity of 3–45 t/h, it handles high-throughput grinding with ease. The anti-wear shovel design and curved grinding rollers reduce maintenance costs, while the integral bevel gear drive saves space and installation costs. Models include MTW110 (55 kW, 3–9 t/h), MTW138Z (90 kW, 6–17 t/h), MTW175G (160 kW, 9.5–25 t/h), and MTW215G (280 kW, 15–45 t/h). The MTW Series is ideal for free-milling gold ores and for plants that require a reliable, low-maintenance grinding circuit.
Comparison of Grinding Mill Technologies for Gold Ore

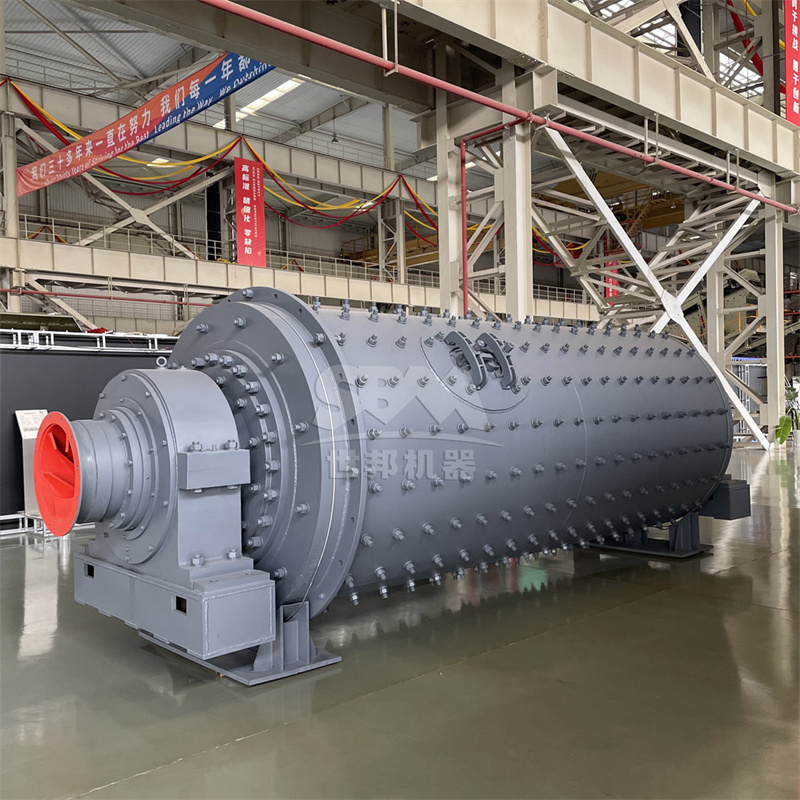

Ball mills remain the traditional workhorse for coarse grinding (0.074–0.8 mm) and can handle up to 450 t/h. However, they are energy-intensive and generate high noise levels. Vertical roller mills (LM Series) offer 30–40% lower energy consumption and a compact footprint. Ultrafine mills (SCM Series) are unmatched for fine and ultra-fine grinding but have lower capacity per unit. Trapezium mills (MTW Series) provide a middle ground with good capacity and moderate fineness. For gold ore powder production, a two-stage grinding circuit is often optimal: a ball mill or LM vertical mill for primary grinding, followed by an SCM ultrafine mill or MTW mill for secondary/regrinding. This combination ensures both throughput and liberation.
Operational Considerations and Best Practices
When selecting a grinding mill, consider the following: (1) Conduct a thorough ore characterization, including Bond ball mill work index, abrasion index, and gold deportment analysis. (2) Pilot-scale testing with your actual ore is recommended before full-scale implementation. (3) Evaluate the total cost of ownership, including installation, energy, wear parts, and maintenance. (4) Ensure the mill supplier offers reliable after-sales support and spare parts availability. Our company provides all these services, along with patented technologies such as the internal suction oil lubrication system in the MTW Series and the modular grinding roller assembly quick-change system in the LM Series.
Conclusion
Choosing the right grinding mill for your gold processing plant requires a careful assessment of ore characteristics, target fineness, throughput, energy costs, and environmental regulations. The SCM Series Ultrafine Mill and MTW Series European Trapezium Mill represent two of the most efficient and reliable solutions available today. For ultra-fine gold liberation, the SCM Series delivers precision and energy savings. For medium to large-scale plants requiring robust performance, the MTW Series offers high capacity and low maintenance. Combined with our LM Series Vertical Roller Mill for primary grinding, you can build a complete gold ore powder production line that maximizes recovery and minimizes operating costs. Contact our engineers today to conduct a feasibility study for your specific gold ore.
