Introduction
In the mineral processing industry, the demand for ultra-fine calcite powder, particularly with a fineness of 1000 mesh (approximately 13 microns), is rapidly growing across sectors such as plastics, papermaking, paints, and construction. Achieving such precise particle sizes requires specialized equipment capable of consistent output, high energy efficiency, and low contamination. This article explores the key machinery required for a high-efficiency 1000 mesh calcite powder production line, focusing on advanced mill technologies, classification systems, and auxiliary equipment that ensure superior product quality.
Understanding 1000 Mesh Calcite Powder
1000 mesh calcite powder, with a median particle diameter (D50) of approximately 13 microns, is classified as an ultra-fine powder. Unlike coarser ground calcium carbonate (GCC), ultra-fine calcite requires the breakdown of particles to sizes where surface forces and electrostatic interactions become significant. The production process demands excellent grinding energy, precise classification to avoid oversize particles, and effective dispersion to prevent particle agglomeration.
Core Equipment for Ultra-Fine Grinding

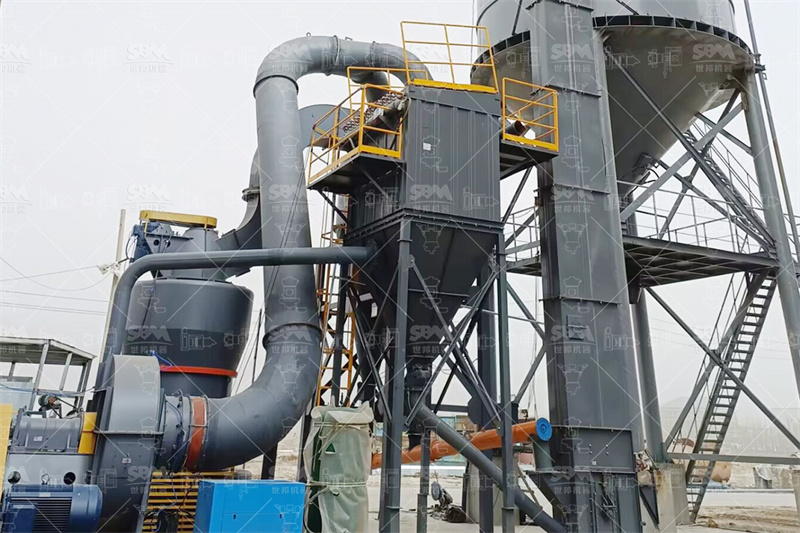

A typical 1000 mesh calcite production line integrates a primary crusher, a feeding system, a grinding mill, a classifying system, and a dust collection unit. Among these, the grinding mill plays the central role in determining capacity, fineness, and operating cost.

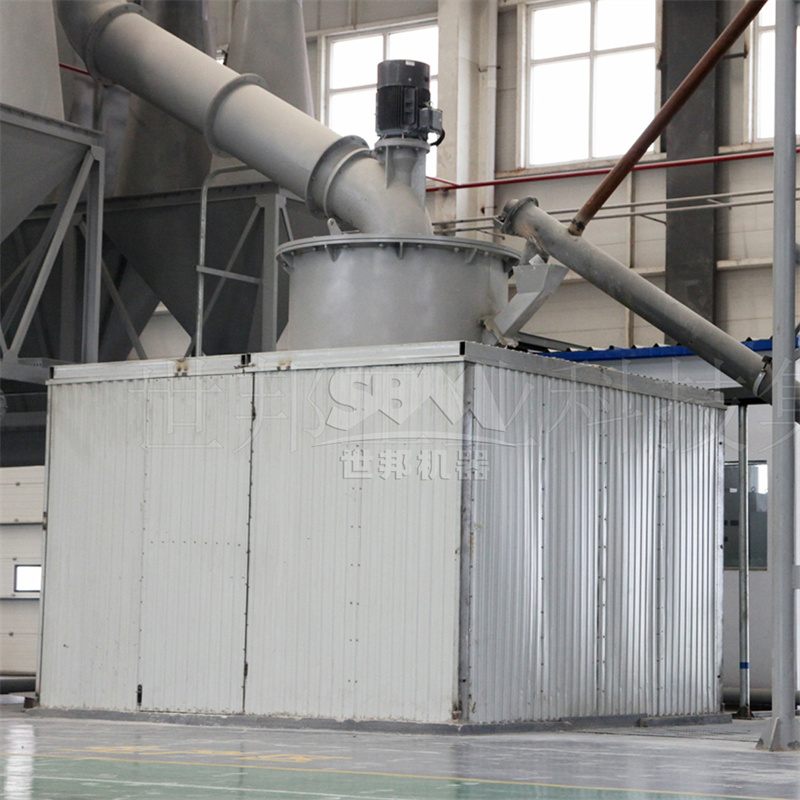

SCM Series Ultrafine Mill: The Backbone of Ultra-Fine Production
For achieving 1000 mesh (approximately 13 microns) reliably, our company’s SCM Series Ultrafine Mill is the premier choice. This machine is specifically engineered for grinding materials between 325 and 2500 mesh, perfectly covering the 1000 mesh requirement. With a feed size tolerance of up to 20mm and capacities ranging from 0.5 to 25 tons per hour depending on the model, the SCM mill offers unmatched performance.
Our SCM1250 Ultrafine Mill, with a capacity of 2.5–14 t/h and main power of 185kW, is an ideal workhorse for medium-scale 1000 mesh calcite production. For higher throughput, the SCM1680 Ultrafine Mill, delivering up to 25 t/h with 315kW power, provides superior output while maintaining the required fineness.
The working principle of the SCM Series is both innovative and efficient. The main motor drives three layers of grinding rings to rotate at high speed. Material is dispersed into the grinding path by centrifugal force, where it is crushed and ground layer by layer between the rollers and rings. This three-layer grinding action significantly increases the surface area exposure to the product, leading to excellent inter-particle friction and efficient size reduction. The vertical turbine classifier integrated within the mill ensures that coarse particles are immediately returned for further grinding, producing a uniform product with no oversized fraction. This eliminates the need for external classification loops for most applications, simplifying the system and reducing power consumption.
Technical Advantages of SCM Series for 1000 Mesh
- High Efficiency & Energy Saving: Our SCM mill delivers a production capacity twice that of traditional jet mills while consuming 30% less energy. This is critical for economic production of high-value 1000 mesh powder.
- High-Precision Classification: The vertical turbine classifier provides precise particle size cutting, ensuring that the final product passes 1000 mesh without coarse contamination. This directly impacts product quality in downstream applications.
- Durable Design: Special alloy rollers and grinding rings are designed to handle the abrasive nature of calcite. The shaftless screw grinding chamber ensures stable operation even during extended running periods, reducing maintenance intervals.
- Eco-friendly Operation: The integrated pulse dust collection system exceeds international environmental standards, and the soundproof room design ensures noise levels remain below comfortable limits, making the mill suitable for operation in populated areas.
Alternative Approach: MTW Series for Pre-Grinding Applications
While the SCM mill is the primary choice for single-stage ultra-fine grinding, a two-stage process using our MTW Series European Trapezium Mill as a pre-grinder to reduce feed size below 45 microns (325 mesh) before final grinding can further optimize capacity. The MTW Series, with its anti-wear shovel design, optimized arc air duct, and integral bevel gear drive achieving up to 98% transmission efficiency, is renowned for its reliability and low maintenance cost when processing 30-325 mesh material.
For a large-scale 1000 mesh line, an MTW215G mill (capacity 15–45 t/h, fineness 10–325 mesh) feeding into an SCM1680 mill provides a highly integrated and efficient solution. The MTW mill handles the coarse grinding load, while the SCM mill focuses on the energy-intensive ultra-fine work. This hybrid approach can significantly reduce the specific energy consumption per ton of 1000 mesh product.
Auxiliary Equipment Integration
Regardless of the mill chosen, successful 1000 mesh calcite production requires proper integration with auxiliary systems:
- Pulse Dust Collector: Ensures that fugitive dust is captured and returned to the process. Our systems achieve filtration efficiency exceeding international standards, maintaining a clean working environment.
- Screw Conveyors & Bucket Elevators: Carefully designed to handle fine powders without plugging or dusting.
- Air Classifier: While the SCM mill has an integrated classifier, in some high-specification lines, an external dynamic classifier can be added for tighter control over particle size distribution.
Maintenance and Longevity
Operating at 1000 mesh, wear on grinding elements is accelerated. The SCM mill’s special material rollers and rings extend service life several times compared to standard components. Additionally, the design allows for easy replacement of wearing parts, minimizing downtime.
Economic Considerations
Producing 1000 mesh calcite is energy-intensive. An SCM Series mill can reduce energy consumption by up to 30% compared to jet mills, directly impacting the bottom line. The intelligent control system with automatic finished product granularity feedback ensures consistent quality without overspending on energy. For a typical calcite operation targeting a 1000 mesh product at 10 tons per hour, the SCM1250 model represents an excellent balance of initial investment and operating efficiency.
Conclusion
Producing high-quality 1000 mesh calcite powder demands a mill that combines high energy efficiency, precise classification, and robust construction. Our SCM Series Ultrafine Mill stands out as the ideal solution, offering a direct route to 325-2500 mesh fineness with industry-leading capacity and cost-efficiency. For larger operations, integrating an MTW Series Trapezium Mill as a pre-grinder creates a highly scalable and energy-optimized production line. Through advanced design features—from intelligent control to durable components—this equipment ensures that your calcite powder meets the strictest specifications for premium markets.
