Introduction
Coal gangue, a solid waste generated during coal mining and washing, has long been a significant environmental challenge. However, with advancements in powder processing technology, it has been transformed into a valuable resource for industries such as building materials, ceramics, and chemical engineering. Producing high-quality 80-mesh (180μm) coal gangue powder requires efficient, durable, and energy-saving equipment. This article provides a comprehensive guide to the key machines involved in a high-efficiency 80-mesh coal gangue powder production line, focusing on their technical advantages and selection criteria to help you optimize your investment.
Crushing and Pre-grinding: The Foundation of Efficiency
Before the fine grinding stage, raw coal gangue must be crushed to a suitable size. The typical feed size for most grinding mills is below 20-50mm. A Hammer Mill is an ideal primary crusher for this task. Its high-speed rotating hammers can efficiently reduce raw gangue (up to 40mm) to a fine powder of 0-3mm in a single pass. This pre-crushing step significantly reduces the load on the main grinding mill, enhancing overall system throughput.
For larger capacity requirements, a LM-Y Vertical Pre-grinding Mill can be integrated into the system. This machine utilizes a bed grinding principle, which consumes 30-50% less power than traditional crushing methods. It is perfect for preparing material for subsequent fine grinding, especially in large-scale cement and mineral processing plants.
Key Grinding Equipment for 80-Mesh Production
Choosing the correct grinding mill is the most critical decision in the production line. For producing coal gangue powder at 80-mesh (with a typical range of 30-325 mesh), several options are available, each with specific strengths.

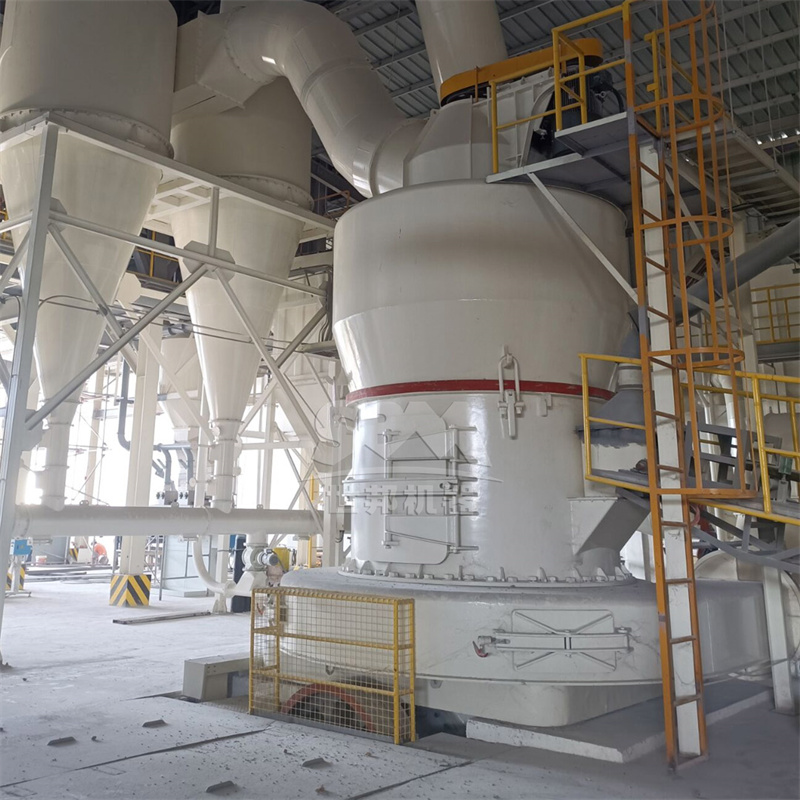

1. MTW Series European Trapezium Mill
The MTW Series European Trapezium Mill is a workhorse for medium to large-scale production with a fineness range of 600-45μm (30-325 mesh). Its key advantages for coal gangue processing include an anti-wear shovel design that reduces maintenance costs and an optimized arc air duct that improves transmission efficiency. The integral bevel gear drive, with a transmission efficiency of up to 98%, ensures stable operation and low energy consumption.
For example, the MTW138Z model can process coal gangue with a feed size of less than 35mm, delivering a capacity of 6-17 t/h at 80-mesh. Its robust construction and intelligent control system make it a top choice for consistent, high-volume production.

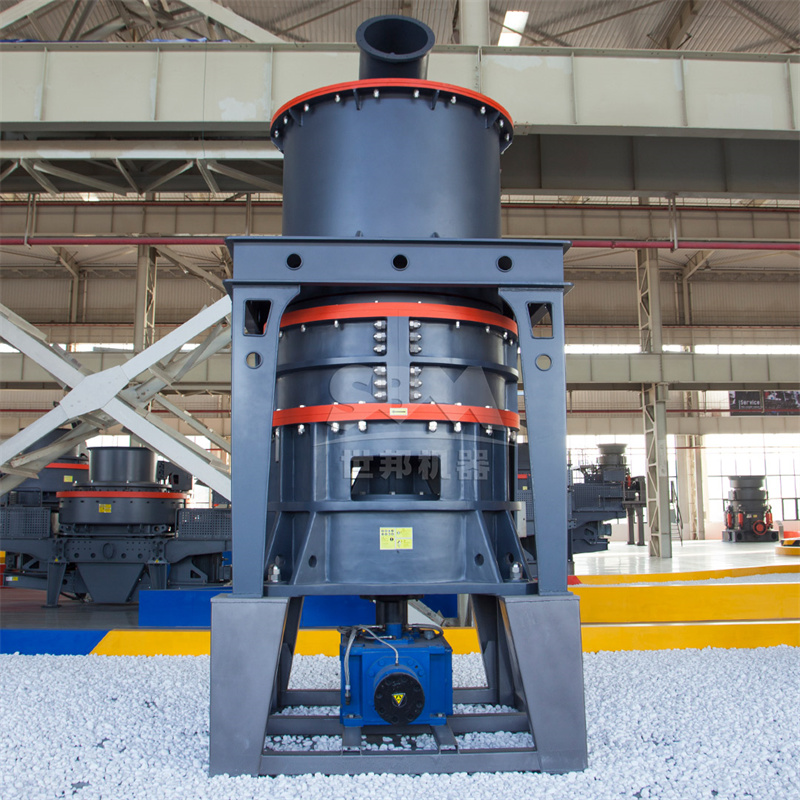

2. SCM Series Ultrafine Mill
For applications requiring a finer product or when processing more abrasive gangue, the SCM Series Ultrafine Mill (45-5μm) offers superior performance. Its capacity is twice that of jet mills with 30% lower energy consumption. The vertical turbine classifier ensures high-precision particle size cutting, preventing any coarse powder from mixing into the final product. The special material rollers and rings extend the service life several times over, making it a durable and reliable solution.
When selecting equipment for 80-mesh coal gangue powder production, the MTW Series or LM Series Vertical Roller Mill are often the most cost-effective choices due to their optimized balance of capacity and energy consumption. For operations that need to switch between 80-mesh and finer grades (e.g., 325 mesh), or when energy efficiency is the absolute priority, the SCM Ultrafine Mill is highly recommended.
Classification and Dust Collection: Ensuring Quality and Compliance
Modern grinding mills come with integrated high-precision classifiers. For 80-mesh production, a dynamic classifier is essential to ensure precise particle size control and consistent product quality. Both the MTW Series and SCM Series feature advanced classification systems that can be adjusted to meet specific fineness requirements.
Environmental compliance is non-negotiable in modern industry. All systems should be equipped with a high-efficiency pulse dust collector. This not only captures valuable product but also ensures that dust emissions meet stringent international standards, creating a safe and clean working environment.
Selection Guide: Choosing the Right Machine for Your Needs
Selecting the right equipment for an 80-mesh coal gangue powder production line depends on three primary factors: Capacity, Energy Efficiency, and Product Quality.
- For Small to Medium Capacity (3-10 t/h): Consider the MTW110Z or MTM130 (Medium-speed Trapezium Mill). These models offer a good balance of cost and performance.
- For Medium to High Capacity (10-45 t/h): The MTW138Z, MTW175G, or the LM150K Vertical Roller Mill are excellent choices. They provide high throughput with relatively low energy consumption.
- For Ultra-High Capacity (Over 45 t/h): The MTW215G or a large LM Series Vertical Roller Mill (e.g., LM220K) is the most economical solution for large-scale industrial production.
- For Multi-Purpose or Fine Grinding Needs: If you plan to produce both 80-mesh and finer products (325-2500 mesh), the SCM Series Ultrafine Mill provides unmatched flexibility and precision.
We highly recommend our MTW175G European Trapezium Mill for large-scale 80-mesh coal gangue projects. With a main power of 160kW and a capacity of 9.5-25 t/h for materials under 40mm, it offers exceptional efficiency, a long-lasting wear life, and low noise levels. It is the perfect solution for maximizing return on investment.
Furthermore, for projects demanding the highest energy savings and a compact layout, our SCM1000 Ultrafine Mill is an outstanding option. Despite its smaller capacity range (1.0-8.5 t/h), its advanced grinding technology and intelligent control system reduce operating costs by up to 30% compared to traditional mills, all while delivering a product of unparalleled uniformity.
Conclusion
Investing in high-efficiency 80-mesh coal gangue powder production equipment is a strategic move towards sustainable resource utilization and profitability. By carefully considering the key technical parameters and aligning them with your production goals, you can build a system that delivers consistent quality, low operating costs, and a quick return on investment. Whether you choose the robust MTW Series, the flexible SCM Ultrafine Mill, or the high-capacity LM Series Vertical Mill, you are making a choice for advanced technology and long-term reliability.
