Introduction to Barite in Plastic Compounding
In the modern plastics industry, the demand for high-performance yet cost-effective filler masterbatches has never been greater. Barite (barium sulfate, BaSO4), with its high specific gravity, low oil absorption, excellent chemical inertness, and superior X-ray opacity, stands out as a premier functional filler. When processed to the correct particle size distribution, barite powder significantly enhances the dimensional stability, tensile strength, and surface gloss of plastic products, while reducing production costs. However, the key to unlocking these benefits lies in the efficiency and precision of the grinding equipment used. For manufacturers of filler masterbatches and compounding lines, selecting the right barite additive production equipment is paramount to achieving a competitive edge in terms of product quality, energy consumption, and throughput.
This comprehensive guide explores a complete range of high-efficiency milling solutions designed specifically for the demanding requirements of plastic-grade barite production. We will delve into the technological advantages, working principles, and model specifications of our advanced grinding mills, offering you a complete solution from raw barite ore to ultra-fine, high-quality powder ready for compounding.
The Critical Role of Ultrafine Grinding in Masterbatch Quality
The quality of a filler masterbatch is directly correlated with the fineness and uniformity of the mineral powder used. Coarse particles can act as stress concentration points, leading to reduced impact resistance and poor surface finish in the final plastic part. Conversely, an ultra-fine powder with a narrow particle size distribution ensures better dispersion, improved mechanical properties, and a smoother, more polished appearance. For barite, achieving a fineness between 325 mesh (45μm) and 2500 mesh (5μm) is often required for high-end applications such as automotive parts, packaging films, and sound-dampening materials. To meet these stringent standards, traditional grinding methods are no longer sufficient. This is where our SCM Series Ultrafine Mill and LUM Ultrafine Vertical Roller Mill come into play, providing the precision and efficiency required for modern plastic compounding.

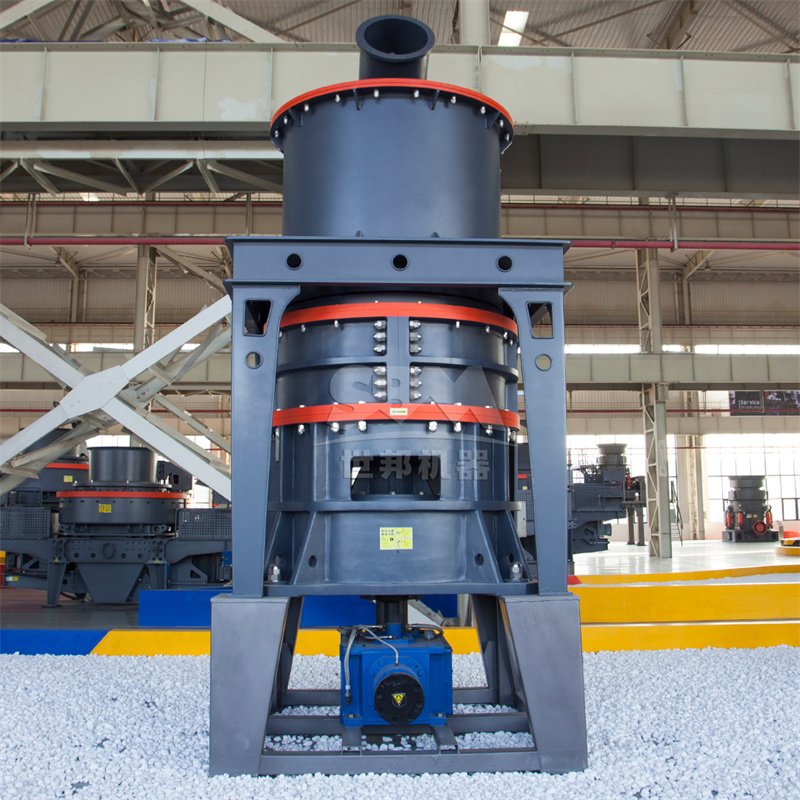

SCM Series Ultrafine Mill: The Workhorse for 45-5μm Barite
Our flagship solution for producing fine and ultra-fine barite powder is the SCM Series Ultrafine Mill. Designed with cutting-edge technology, this mill is engineered to deliver exceptional performance in the 325-2500 mesh range, making it ideal for producing high-grade filler masterbatch. The SCM mill operates on a principle of layer-by-layer grinding, where materials are dispersed by centrifugal force and crushed repeatedly by the pressure of grinding rollers against three layers of grinding rings. This ensures not only a high reduction ratio but also a remarkably uniform output.
Technical Advantages of the SCM Mill
The SCM Series is celebrated for its high efficiency and energy savings, boasting a capacity that is twice that of traditional jet mills while consuming 30% less energy. This economic advantage is complemented by its high-precision classification system. The vertical turbine classifier ensures a precise particle size cut, strictly preventing the mixing of coarse powder into the final product, a critical factor for maintaining consistent quality in plastic films and fibers. Furthermore, its durable design, featuring special material rollers and rings, extends the service life several-fold, reducing downtime and maintenance costs. The system is also designed with sustainability in mind, featuring an eco-friendly, low-noise pulse dust collection system that exceeds international emission standards, often negating the need for additional dust collection infrastructure.
For instance, the SCM1250 model offers a production capacity of 2.5 to 14 tons per hour with a main power of 185kW, providing an ideal balance between output and energy consumption for medium-to-large scale masterbatch producers. With feed sizes up to 20mm, it can directly process the output of a primary crusher or ball mill, streamlining the overall production flow. The intelligent control system, which provides automatic finished product granularity feedback, ensures stable operation around the clock, making it a reliable cornerstone for a continuous compounding line.

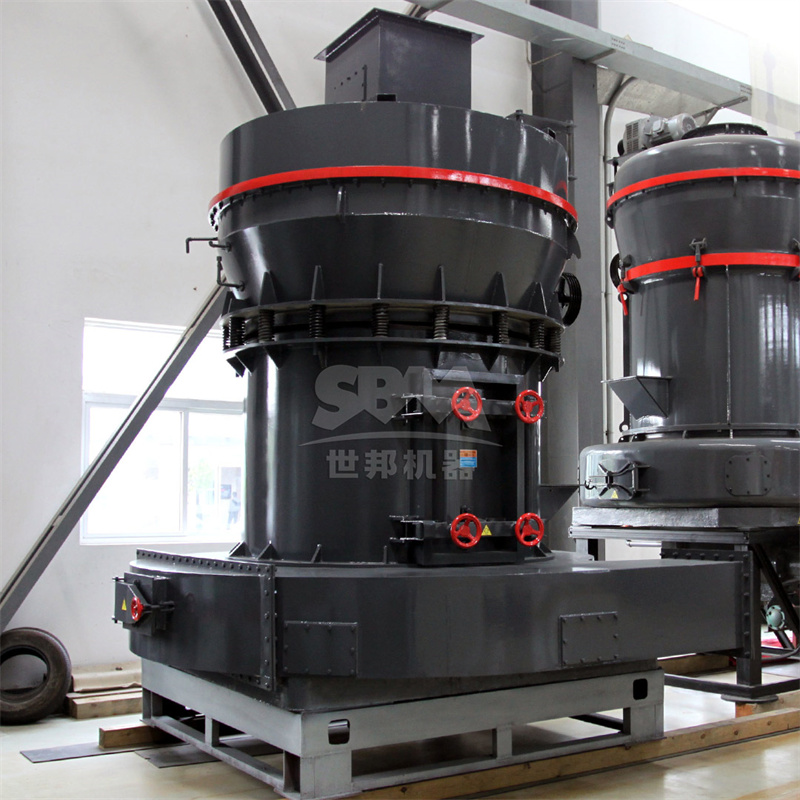

MTW Series European Trapezium Mill: Versatility in the 600-45μm Range
For applications where the primary requirement is a slightly coarser powder, typically in the 30 to 325 mesh range (600-45μm) for general-purpose masterbatches or as a pre-grinding stage, the MTW Series European Trapezium Mill is the optimal choice. Its robust design and patented technologies make it a highly versatile and cost-effective solution for processing a wide variety of minerals, including barite.
The MTW mill is distinguished by its anti-wear shovel design, which reduces maintenance costs and prolongs the life of the grinding roller. The optimized arc air duct minimises airflow energy loss, thereby improving overall transmission efficiency. Additionally, the integral bevel gear drive system achieves a transmission efficiency of up to 98%, saving valuable floor space and reducing installation costs. This model is particularly suited for operations that require flexibility in their product range, allowing quick adjustments between different fineness levels.
Choosing the Right Grinding Solution
Selecting between the SCM and MTW series depends largely on the desired final particle size and the specific quality requirements of the plastic product. For high-value applications demanding excellent dispersion and surface quality, we recommend our SCM1000 Ultrafine Mill. With a capacity of 1.0-8.5 t/h and a main power of 132kW, it offers high production rates in a compact footprint, ensuring a rapid return on investment (ROI). For vast operations producing multi-grade fillers, combining an MTW mill for coarse-to-mid range grinding with an LUM or SCM mill for the final fine grinding stage can create a highly efficient, multi-staged production system that maximizes output and minimizes energy use.
LM Series Vertical Roller Mill: The High-Capacity Standard
When scalability and low operating costs are the primary concerns, the LM Series Vertical Roller Mill presents an unrivaled solution. Capable of handling capacities from 3 to 250 tons per hour, this system is ideal for centralised production facilities supplying powder to multiple masterbatch lines. Its integrated design consolidates crushing, grinding, drying, and classification into a single unit, reducing floor space by 50% and infrastructure costs by 40% compared to traditional grinding systems. The material bed grinding principle ensures that rollers and the grinding table do not come into direct contact, extending the life of wear parts by three times and consuming 30-40% less energy than ball mill systems.
The LM mill’s fully sealed negative-pressure operation guarantees a clean and safe work environment, with dust emission levels well below national standards. For example, the LM190K model, with a table diameter of 1900mm and a capacity of 23-68 t/h, is a popular choice for large-scale mineral processors. Its expert-level automatic control system supports remote monitoring and real-time parameter adjustment, drastically reducing the need for manual intervention and ensuring consistent product quality for demanding compounding applications.
MTM Series and Pendulum Mills: For Mid-Range Flexibility
Our product portfolio also includes the MTM Series Medium-speed Trapezium Mill and the MRN Pendulum Mill. The MTM series is celebrated for its intelligent pressure regulation system, which automatically compensates for roller wear, ensuring consistent performance over a long service life. Meanwhile, the MRN Pendulum Mill offers one of the widest capacity ranges (2.7-83 TPH) and the unique advantage of thin-oil lubrication and maintenance-free design. These units are excellent choices for mid-size producers who need to switch frequently between different fineness specifications or for those processing a mix of barite and other minerals.
To give a concrete example of our commitment to efficiency, our LUM Ultrafine Vertical Roller Mill is another top-tier option. The LUM1836 model, with a main power of 355-400kW, can produce 2.3 to 15 tons per hour of ultra-fine powder with a fineness of 5-30 microns. Its multi-rotor classifying technology ensures that there are no coarse particles in the final product, making it an outstanding choice for the most demanding filler applications.
Conclusion: Your Complete Partner in Barite Processing
From initial crushing with our robust Hammer Mills and Ball Mills to ultra-fine pulverization with our SCM and LUM mills, we offer a truly comprehensive and complete solution for the plastic filler masterbatch industry. Our equipment is engineered not just for grinding, but for optimizing your entire production line. Whether you are enhancing the sound-dampening qualities of automotive plastics or improving the surface finish of packaging films, our grinding mills provide the high throughput, precision, energy efficiency, and reliability needed to keep your compounding line operating at peak efficiency. Contact us today to find the perfect configuration for your specific operational requirements and take your production capabilities to the next level.
