Introduction: The Growing Demand for Cleaner Steel Production
As global environmental regulations become increasingly stringent, the steel industry faces mounting pressure to reduce its ecological footprint. One of the most critical challenges in steel smelting is the removal of sulfur impurities, which not only degrade steel quality but also release harmful SO₂ emissions during processing. The production of high-quality desulfurization agents—typically fine powders of calcium-based or magnesium-based compounds—has therefore become a cornerstone of modern, cleaner steel manufacturing. At the heart of this process lies advanced milling equipment capable of producing ultra-fine, uniform powders with exceptional efficiency. Our company offers a comprehensive range of grinding solutions tailored specifically for desulfurization agent production, combining high throughput, energy savings, and environmental compliance.
The Role of Desulfurization Agents in Steel Smelting
Desulfurization agents, such as calcium oxide (CaO), calcium carbide (CaC₂), and magnesium-based powders, are injected into molten iron or steel to chemically bind with sulfur, forming slag that can be easily removed. The effectiveness of this process depends heavily on the particle size and surface area of the agent. Finer particles (typically 325-2500 mesh or 5-45 μm) provide faster reaction kinetics and more complete sulfur removal, leading to higher-quality steel and lower operational costs. This is where our high-efficiency milling equipment delivers transformative value.
Core Challenges in Desulfurization Agent Grinding
Producing desulfurization agents at industrial scale presents several technical hurdles: the raw materials are often abrasive and have moderate hardness; the required fineness demands precision classification; and high production volumes necessitate energy-efficient solutions. Traditional ball mills or jet mills often fall short, either consuming excessive power or failing to achieve the necessary particle size distribution without coarse contamination. Our product portfolio directly addresses these challenges through innovative engineering and decades of application expertise.

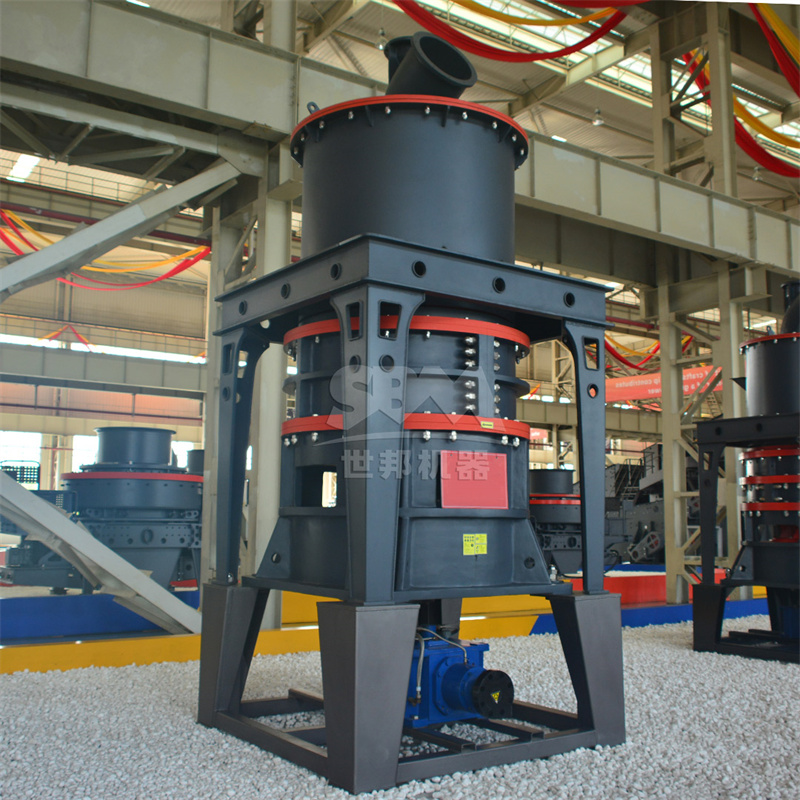

SCM Series Ultrafine Mill: Precision Grinding for Ultra-Fine Desulfurization Powders
For applications requiring the finest desulfurization agents—typically in the range of 325 to 2500 mesh (45-5 μm)—our SCM Series Ultrafine Mill stands as the industry benchmark. This mill is designed to deliver twice the capacity of jet mills while consuming 30% less energy, making it a highly cost-effective solution for large-scale operations. The key to its performance is the unique three-layer grinding ring design, driven by the main motor to rotate at high speed. Materials are dispersed into the grinding path by centrifugal force, crushed by roller pressure, and ground layer by layer to achieve exceptional uniformity.
The vertical turbine classifier is a critical component, ensuring precise particle size cutting with no coarse powder mixing. This guarantees that every batch of desulfurization agent meets the stringent fineness requirements for optimal sulfur removal efficiency. Furthermore, the SCM series features intelligent control with automatic finished product granularity feedback, allowing operators to maintain consistent quality with minimal manual intervention. Durability is also a hallmark: special material rollers and rings extend service life several times over, while the shaftless screw grinding chamber ensures stable, vibration-free operation even under continuous heavy loads.
We highly recommend the SCM1250 model, which offers a capacity of 2.5-14 tonnes per hour with a main power of 185 kW. For larger operations, the SCM1680 model delivers 5.0-25 tonnes per hour using a 315 kW main motor, making it ideal for centralized desulfurization agent production facilities. Both models support an output fineness range of 325-2500 mesh, providing the flexibility to produce agents for various steel grades. Environmentally, the integrated pulse dust collection system exceeds international standards, and the soundproof room design ensures noise levels remain within safe limits, supporting cleaner and quieter manufacturing environments.

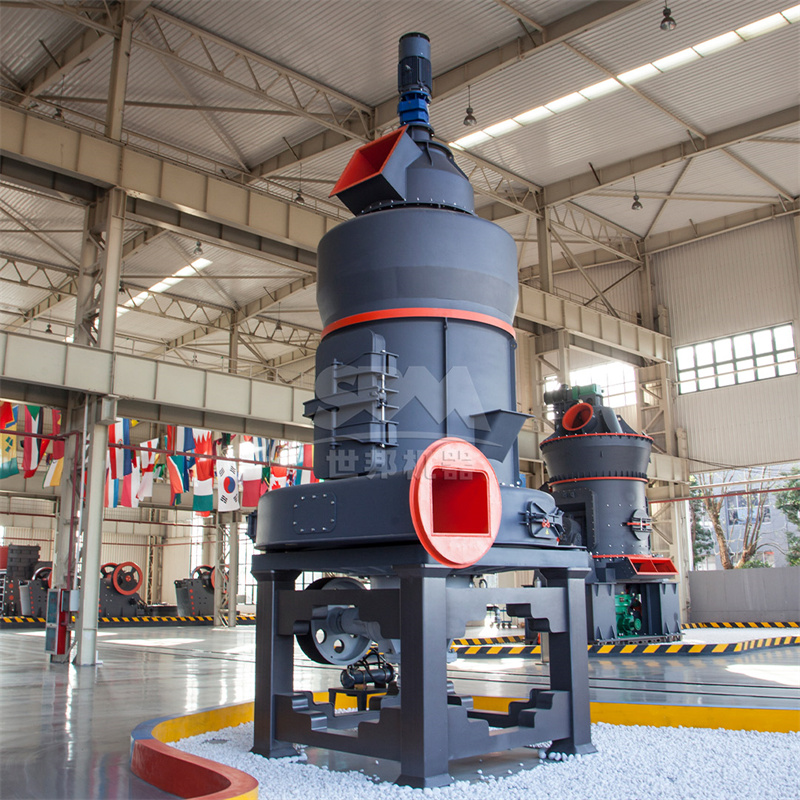

MTW Series European Trapezium Mill: Versatile Solution for Medium-Fineness Applications
For applications where the target fineness is between 30 and 325 mesh (600-45 μm), such as pre-treatment or bulk desulfurization agent production, our MTW Series European Trapezium Mill offers unmatched versatility and reliability. This mill series incorporates several patented innovations that set it apart. The anti-wear shovel design reduces maintenance costs significantly, while the curved shovel configuration extends grinding roller life. The optimized arc air duct minimizes airflow energy loss, improving overall transmission efficiency, and high-strength guard plates protect the working surfaces from premature wear.
The integral bevel gear drive system achieves a remarkable 98% transmission efficiency, saving both space and installation costs. The wear-resistant volute structure employs a non-resistance flow design that improves air selection efficiency, leading to more consistent product quality while reducing maintenance costs by 30%. With models ranging from the compact MTW110 (3-9 t/h) to the high-capacity MTW215G (15-45 t/h), there is an ideal configuration for every production scale. These mills are particularly well-suited for producing calcium-based desulfurization agents where slightly coarser particles are acceptable but high throughput is essential.
We recommend the MTW138Z model (6-17 t/h, 90kW main power) as an excellent balance of capacity and energy efficiency. For the largest operations, the MTW215G model (15-45 t/h, 280kW main power) can serve as the backbone of a high-volume production line. Both models feature independent intellectual property rights, an internal suction oil lubrication system, and internationally advanced pulse dust removal technology, ensuring minimal environmental impact and maximum uptime.
LM Series Vertical Roller Mill: Integrated High-Capacity Production Systems
When the production target exceeds 50 tonnes per hour, our LM Series Vertical Roller Mill becomes the optimal choice. This series integrates crushing, grinding, and classification into a single system, reducing floor space by 50% compared to traditional ball mill systems. The non-contact design between rollers and table increases wear part life by three times, while energy consumption is 30-40% lower than ball mill systems. The expert-level auto-control system supports remote and local switching, with real-time parameter monitoring that reduces manual intervention to a minimum.
The LM series is available in multiple sub-series to handle different materials and fineness requirements. For desulfurization agent production, the Vertical Mineral Mill Series (LM130K to LM280K) offers capacities from 10 to 170 tonnes per hour with fineness down to 40 μm. The Vertical Fine-powder Mill Series (LM130X-GX to LM220X-GX) achieves 325-600 mesh fineness with three-roller configurations, ideal for premium desulfurization agents. All models operate under fully sealed negative pressure conditions, ensuring dust emissions below 20 mg/Nm³ and operating noise below 85 dB(A)—well within the strictest environmental regulations.
Patented technologies such as the modular grinding roller assembly quick-change system and dynamic classifier multi-stage adjustment make the LM series exceptionally maintainable and adaptable. For operations requiring both high capacity and fine grinding, the LM190K (23-68 t/h, 500kW) offers an excellent price-to-performance ratio, while the LM220K (36-105 t/h, 800kW) can serve as a central production unit for large steel mills.
Supporting Equipment for Complete Desulfurization Agent Production Lines
While the milling core is critical, a complete desulfurization agent production line also requires efficient pre-crushing and post-processing equipment. Our Hammer Mill series (PC4008-75 to PC4015-132) provides robust pre-crushing from 40mm feed down to 3mm output, preparing raw materials for the main mill. For applications requiring ultra-high throughput pre-grinding, the LM-Y Vertical Pre-grinding Roller Mill (LM150Y to LM340Y) can handle circulation capacities up to 1000 t/h, reducing the load on final grinding stages by 30-50% through its bed grinding principle.
For the highest fineness requirements beyond SCM capabilities, the LUM Ultrafine Vertical Roller Mill achieves 325-2500 mesh with multi-rotor classification technology. The MRN Pendulum Mill series, featuring thin oil lubrication and square pipe collectors, offers capacities from 2.7 to 83 tonnes per hour for medium-fineness production. Together, these products form a complete ecosystem that can be tailored to any desulfurization agent production scenario.
Conclusion: Advancing Cleaner Steel Manufacturing
The transition to cleaner steel manufacturing is not optional—it is an industrial imperative. High-efficiency desulfurization agent production equipment is a key enabler of this transition, allowing steelmakers to reduce sulfur content faster, more consistently, and with lower environmental impact. Our comprehensive range of mills—from the SCM ultrafine series through MTW, LM, and supporting equipment—provides tailored solutions for every scale and requirement. By choosing our equipment, steel manufacturers can achieve the dual goals of operational excellence and environmental stewardship.
Our commitment extends beyond individual machines; we provide complete system engineering, from raw material handling to finished product packaging, with intelligent control systems that optimize energy use and minimize waste. As environmental regulations continue to tighten worldwide, investing in high-efficiency desulfurization agent production equipment is not just a compliance measure—it is a competitive advantage. We invite you to explore how our solutions can transform your steel smelting operations into models of cleaner, more sustainable manufacturing.
