Introduction to Titanium Dioxide Powder Processing
Titanium dioxide (TiO₂) is a critical white pigment used extensively in paints, coatings, plastics, paper, and cosmetics. The quality of titanium dioxide depends significantly on the particle size distribution and purity of the titanium powder used in its manufacturing process. Grinding titanium-bearing materials into a fine, uniform powder is a crucial step that influences the final whiteness, opacity, and performance of the TiO₂ product. Selecting the right milling equipment can dramatically improve production efficiency, reduce energy consumption, and ensure consistent product quality.
The Need for High-Efficiency Milling in TiO₂ Production
Traditional milling methods for titanium dioxide precursors often struggle with high energy costs, low throughput, and inconsistent particle size control. The abrasive nature of titanium-containing minerals demands equipment with superior wear resistance and durable components. Modern TiO₂ manufacturing facilities require mills that can handle fine grinding down to micron or even sub-micron levels while maintaining high capacity and low operational costs. This is where advanced milling technologies such as ultrafine grinding mills and vertical roller mills have become indispensable.
Key Technologies for Titanium Powder Grinding
Several mill types are well-suited for titanium dioxide powder production, including ultrafine mills for fine classification, vertical roller mills for large-scale operations, and trapezium mills for medium-fine grinding. The most efficient systems integrate intelligent control, high-precision classification, and eco-friendly operation to meet the demanding standards of the TiO₂ industry.

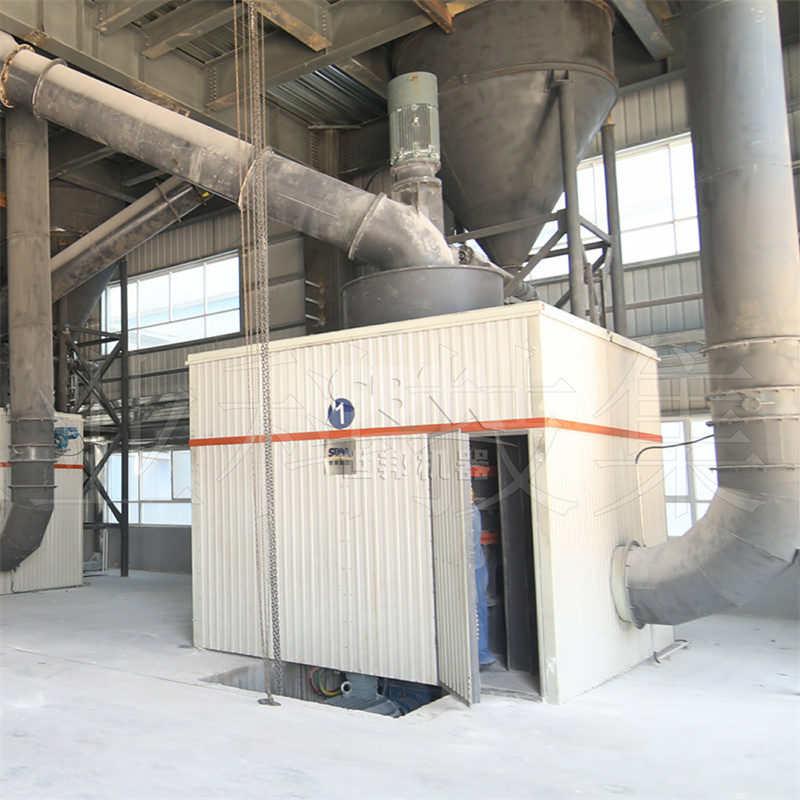

SCM Series Ultrafine Mill — Ideal for Ultra-Fine Titanium Powder
For titanium dioxide manufacturing where output fineness needs to reach 325-2500 mesh (45-5μm), the SCM Series Ultrafine Mill offers exceptional performance. With an input size of ≤20mm and capacity ranging from 0.5 to 25 ton/h depending on the model, this mill is a top choice for fine grinding applications.
Technical Advantages of SCM Mill for TiO₂
- High Efficiency & Energy Saving: The SCM mill delivers capacity that is 2 times higher than jet mills while consuming 30% less energy. This is critical for reducing the overall production cost of titanium dioxide.
- High-Precision Classification: The vertical turbine classifier ensures precise particle size cutting with no coarse powder mixing, guaranteeing uniform TiO₂ finished products.
- Durable Design: Special material rollers and rings extend service life several times over, which is essential when grinding abrasive titanium ores. The shaftless screw grinding chamber ensures stable operation even under heavy loads.
- Eco-friendly & Low Noise: Pulse dust collection efficiency exceeds international standards, and the soundproof room design maintains low noise levels, making it suitable for environmentally conscious facilities.
We recommend the SCM1250 Ultrafine Mill (capacity 2.5-14t/h, main power 185kW) for medium-scale TiO₂ plants, and the SCM1680 (capacity 5.0-25t/h, main power 315kW) for large-scale operations requiring maximum throughput.
LM Series Vertical Roller Mill — Large-Scale Titanium Powder Production
For high-capacity titanium dioxide manufacturing lines requiring output fineness of 30-325 mesh (600-45μm) and throughput up to 250 ton/h, the LM Series Vertical Roller Mill is an excellent solution. This mill integrates crushing, grinding, and selection into one system, reducing floor space by 50% and infrastructure costs by 40%.
Why LM Vertical Mill Excels in TiO₂ Processing
- Low Operating Cost: The non-contact design between rollers and table extends wear part life by 3 times. Energy consumption is 30-40% lower than ball mill systems, directly benefiting the profitability of TiO₂ production.
- Intelligent Control: An expert-level auto-control system supports remote and local switching, with real-time monitoring of parameters to reduce manual intervention.
- Environmental Compliance: Fully sealed negative pressure operation ensures dust emissions are minimal, and operating noise is low, meeting strict environmental regulations.
MTW Series European Trapezium Mill — Versatile Medium-Fine Grinding
The MTW Series European Trapezium Mill is another valuable piece of equipment for titanium dioxide manufacturing. With an output fineness of 30-325 mesh and capacity from 3 to 45 ton/h, it is ideal for medium-fine grinding applications. The integral bevel gear drive achieves transmission efficiency up to 98%, saving space and reducing installation costs. The anti-wear shovel design and optimized arc air duct reduce maintenance costs by 30%.

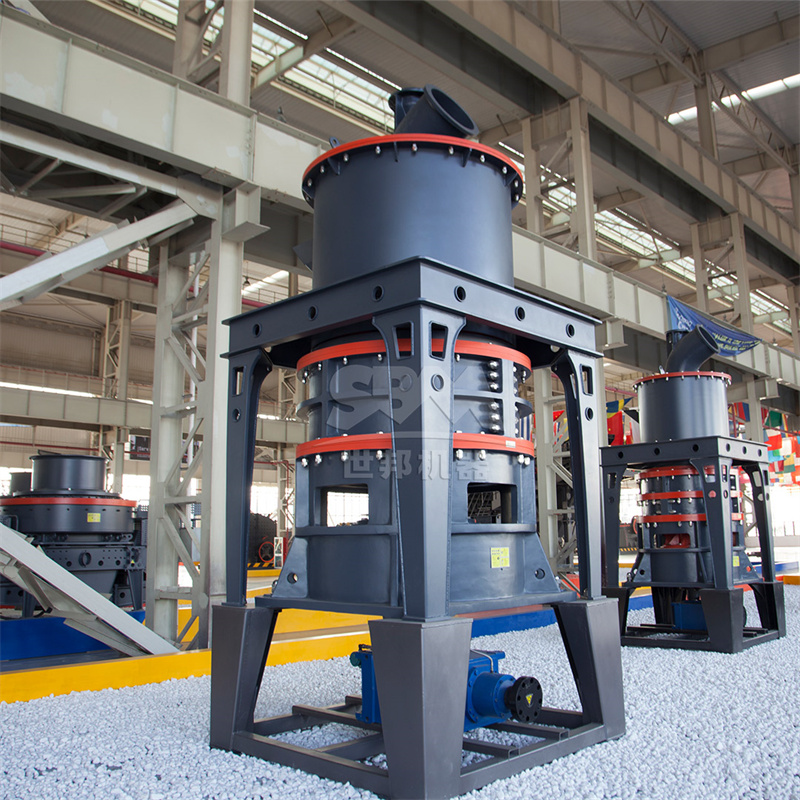

Working Principle of Titanium Powder Mills
In the SCM ultrafine mill, the main motor drives three layers of grinding rings to rotate. Materials are dispersed into the grinding path by centrifugal force, crushed by roller pressure, and ground layer by layer. Finally, powder collection is completed by a cyclone collector and a pulse dust removal system. This layered grinding approach ensures uniform particle size distribution essential for high-quality TiO₂.
Patented Technologies for Superior Performance
Our mills incorporate patented technologies such as internal suction oil lubrication systems, internationally advanced pulse dust removal technology, and modular grinding roller assembly quick-change systems. These innovations ensure reliable operation, reduced downtime, and consistent product quality for titanium dioxide manufacturers.
Environmental and Economic Benefits
Switching to high-efficiency titanium powder production equipment like the SCM ultrafine mill or LM vertical roller mill offers substantial environmental and economic advantages. Lower energy consumption directly reduces carbon footprint, while advanced dust collection systems ensure compliance with the strictest emission standards. The extended service life of wear parts means fewer replacements and less waste, contributing to a more sustainable manufacturing process.
Conclusion
For titanium dioxide manufacturing, investing in high-efficiency milling equipment is essential for achieving superior product quality, reducing operational costs, and meeting environmental standards. The SCM Series Ultrafine Mill and LM Series Vertical Roller Mill represent the pinnacle of grinding technology, offering unmatched efficiency, precision classification, and durability. We invite you to consider our SCM1250 and SCM1680 models for your ultrafine titanium powder needs, or explore the LM series for high-capacity operations. Contact us today to discuss how our equipment can optimize your TiO₂ production line.
