How to Produce 800 Mesh Marble Powder: Equipment Guide for Ultra-Fine Grinding

Introduction

Marble powder, particularly at an ultra-fine fineness of 800 mesh (approximately 15 microns), is a high-value industrial material widely used in plastics, paints, rubber, sealants, and decorative construction. Producing 800 mesh marble powder requires specialized grinding equipment capable of high-precision classification and energy-efficient operation. This guide provides a comprehensive overview of the equipment, processes, and technical considerations necessary to achieve consistent, high-quality ultra-fine marble powder.

Why 800 Mesh Marble Powder?

Marble powder at 800 mesh offers exceptional properties: high brightness, uniform particle size, and excellent dispersion. In the plastics industry, it acts as a functional filler, improving rigidity and reducing production costs. In paints and coatings, it enhances opacity and weather resistance. The economic value of ultra-fine marble powder is significantly higher than coarser grades, driving demand for advanced grinding solutions.

Key Equipment for 800 Mesh Production

To achieve 800 mesh (about 15 microns) reliably, the grinding system must combine high-impact grinding with precise air classification. Below are the critical equipment choices for the marble processing industry.

1. Primary Crushing Stage

Raw marble blocks can be up to several hundred millimeters in size. Before ultra-fine grinding, the material must be reduced to a feed size suitable for the mill. Typically, a hammer mill or jaw crusher is used to crush raw marble to below 20mm. Our hammer mill models, such as the PC4008-75 (capacity 8-15 t/h, power 75kW), are ideal for this primary crushing stage, offering high capacity and a compact design.

2. Ultra-Fine Grinding Mill (Core Equipment)

The heart of the 800 mesh production line is the ultra-fine grinding mill. Two primary technologies are widely adopted:

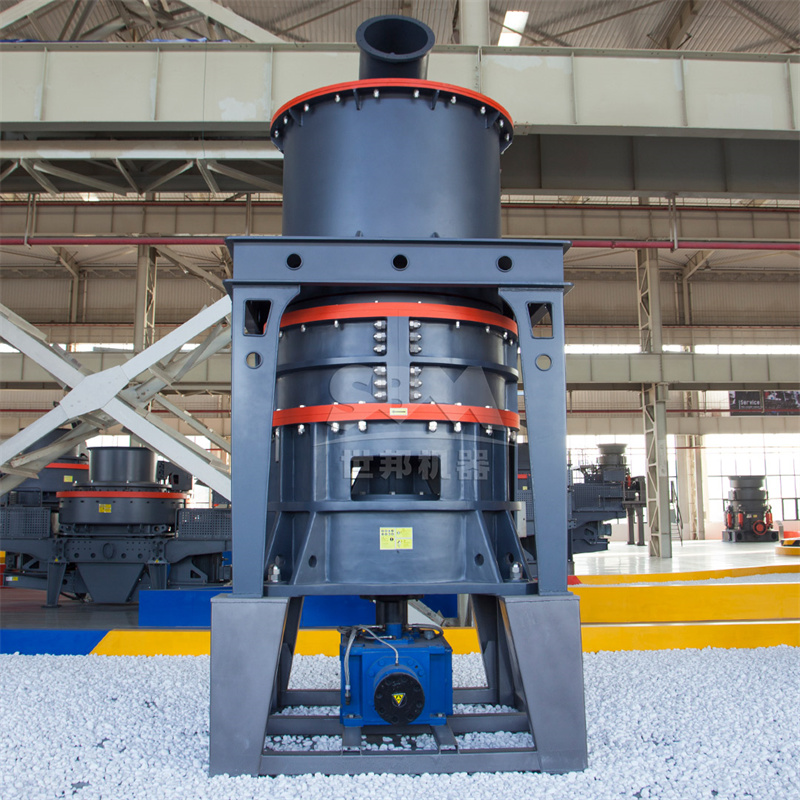

Option A: SCM Series Ultrafine Mill

The SCM Series Ultrafine Mill is specifically designed for producing powders between 325 and 2500 mesh (45 to 5 microns). Its working principle involves the main motor driving three layers of grinding rings to rotate. Materials are dispersed into the grinding path by centrifugal force, crushed by roller pressure, and ground layer by layer. The vertical turbine classifier ensures precise particle size cutting without coarse powder mixing.

• Input Size: ≤20mm
• Output Fineness: 325-2500 mesh
• Capacity: 0.5-25 ton/h (depending on model)

For an 800 mesh marble powder project, the SCM1000 or SCM1250 are excellent choices. The SCM1000 offers a capacity of 1.0-8.5 t/h with a main power of 132kW, while the SCM1250 handles 2.5-14 t/h with 185kW power. Both models achieve the required fineness with high energy efficiency, consuming 30% less energy than traditional jet mills while doubling the capacity.

Option B: MTW Series European Trapezium Mill

For operations that require both fine and somewhat coarser products, the MTW Series European Trapezium Mill is a versatile solution. While its standard output range is 30-325 mesh (600-45μm), with optimized settings and classification, it can approach ultra-fine ranges. Its integral bevel gear drive achieves transmission efficiency up to 98%, and the anti-wear shovel design extends roller life.

• Input Size: ≤50mm
• Output Fineness: 30-325 mesh (down to 0.038mm)
• Capacity: 3-45 ton/h (depending on model)

For high-capacity coarse-to-medium fine marble powder, the MTW215G (capacity 15-45 t/h, power 280kW) provides robust performance. However, for strict 800 mesh requirements, the SCM series remains the optimal choice.

3. Classification System

Precise classification is non-negotiable for 800 mesh powder. The built-in vertical turbine classifier in the SCM series ensures that 97% of the finished product is within the target particle size range. For separate classification systems, dynamic classifiers with variable-speed drives are recommended to adjust cut points accurately.

4. Dust Collection & Environmental Control

Ultra-fine powder production generates significant dust. Both the SCM and MTW mills feature pulse dust collection systems with efficiency exceeding international standards. A negative pressure operation ensures zero dust leakage, meeting strict environmental regulations.

Process Flow for 800 Mesh Marble Powder

1. Primary Crushing: Raw marble goes through a hammer mill or jaw crusher to reduce size to ≤20mm.
2. Elevator & Storage: Crushed material is lifted and stored in a surge bin to ensure steady feed.
3. Ultra-Fine Grinding: Material enters the SCM Ultrafine Mill where it is ground between rollers and rings.
4. Classification: The vertical turbine classifier separates fine particles. Coarse particles return to the grinding zone.
5. Collection: Qualified 800 mesh powder is collected by a cyclone collector and pulse dust removal system.
6. Packaging: Finished powder is stored in silos and packaged for shipment.

Technical Advantages of SCM Series for Marble

• High Efficiency & Energy Saving: Capacity is 2x that of jet mills, with 30% lower energy consumption. Intelligent control with automatic finished product granularity feedback.
• High-Precision Classification: Vertical turbine classifier achieves precise particle size cutting. No coarse powder mixing, ensuring uniform finished products.
• Durable Design: Special material rollers and rings extend service life several times over. Shaftless screw grinding chamber ensures stable operation.
• Eco-friendly & Low Noise: Pulse dust collection efficiency exceeds international standards. Soundproof room design ensures noise levels.

Product Recommendation

For clients looking to produce 800 mesh marble powder efficiently, we strongly recommend the SCM series ultrafine mill (models SCM1000 or SCM1250) as the core grinding equipment. Its ability to consistently produce 325-2500 mesh powder with low energy consumption and precise classification makes it the industry standard for ultra-fine mineral processing. The SCM1250 model, capable of 2.5-14 t/h output, is particularly suited for medium-to-large marble processing plants seeking high purity and uniformity in their ultra-fine products.

Conclusion

Producing 800 mesh marble powder is a demanding process that requires advanced grinding technology, precise classification, and reliable dust control. The SCM Series Ultrafine Mill offers the perfect combination of energy efficiency, product quality, and durability. By selecting the right equipment and following optimized process parameters, manufacturers can unlock the full economic potential of ultra-fine marble powder for high-end industrial applications.
