Introduction
In the current industrial landscape, pulverized coal remains a cornerstone fuel for cement kilns, power generation boilers, metallurgical furnaces, and various chemical processes. The efficiency, safety, and environmental performance of a pulverized coal production system directly impact a plant’s operational costs and compliance with increasingly stringent emission regulations. With a myriad of milling technologies available—from ball mills to vertical roller mills, and from trapezium mills to ultrafine mills—selecting the optimal system can be a daunting task. This article provides a comprehensive guide to choosing the right industrial-grade pulverized coal production equipment, focusing on key criteria such as capacity, fineness, energy consumption, wear resistance, and environmental footprint. We will also highlight specific products from our portfolio, namely the LM Series Vertical Coal Mill and the MTW Series European Trapezium Mill, which exemplify advanced engineering tailored for coal pulverization.
Understanding Pulverized Coal Production Requirements
Before delving into equipment selection, it is crucial to define the specific requirements of your plant. Pulverized coal is typically characterized by its fineness (measured in mesh or microns), moisture content, volatile matter, and grindability (Hardgrove Grindability Index, HGI). The target fineness often ranges from 200 mesh (75μm) for conventional combustion to 325 mesh (45μm) or finer for specialized applications such as blast furnace injection or gasification. Additionally, the required capacity can vary from a few tons per hour for small industrial boilers to over 100 tons per hour for large power stations. The choice of mill also depends on the available space, infrastructure, and the desired level of automation.
Key Selection Criteria for Pulverized Coal Mills
1. Capacity and Fineness Match
The first step is to match the mill’s capacity and fineness range to your production needs. For instance, if your plant requires 30-45 t/h of coal powder with fineness between 200 and 325 mesh, a mill with a wide adjustment range and high capacity is necessary. Our MTW Series European Trapezium Mill offers capacities from 3 to 45 t/h and can grind down to 325 mesh (0.038mm), making it suitable for medium-to-large scale coal preparation. For higher capacities up to 90 t/h and finer grinding down to 20% R0.08 (approximately 200 mesh), the LM Series Vertical Coal Mill is an excellent choice. It is specifically designed for pulverized coal with capacities ranging from 3 to 90 t/h, accommodating the demands of large cement plants and power stations.
2. Energy Efficiency and Operating Costs
Energy consumption is a major operational cost in coal pulverization. Vertical roller mills, such as our LM series, are known for their low energy consumption—30-40% lower than traditional ball mill systems. This is achieved through the bed grinding principle, where material is crushed between rollers and a rotating table, minimizing friction and wear. The MTW series also boasts optimized airflow and an integral bevel gear drive with transmission efficiency up to 98%, reducing power loss. When evaluating mills, consider the specific power consumption (kWh/t) and the total cost of ownership, including maintenance and wear parts replacement.
3. Wear Resistance and Maintenance
Coal is abrasive, and wear parts can account for a significant portion of maintenance costs. Look for mills with durable materials and designs that extend service life. The LM series features a non-contact design between rollers and table, which increases wear part life by up to three times. The modular grinding roller assembly allows for quick changes, reducing downtime. The MTW series employs anti-wear shovel blades and a wear-resistant volute structure, reducing maintenance costs by 30%. Additionally, the thin oil lubrication system in our MRN Pendulum Mill (a related product) ensures maintenance-free operation, a feature that can be adapted to coal applications.
4. Environmental Compliance and Safety
Pulverized coal systems must comply with strict dust emission and noise regulations. The LM series operates under fully sealed negative pressure, with dust emissions well below international standards, and noise levels are minimized through soundproof designs. The MTW series offers multi-stage dust collection options, including pulse dust removal technology. Safety is paramount when handling coal dust, which is explosive. Both LM and MTW mills can be equipped with inert gas systems and explosion-proof features. Our LM series, in particular, has a hot air circulation energy-saving system that also helps control moisture and temperature, reducing explosion risks.
5. Automation and Control
Modern plants demand intelligent control for consistent product quality and reduced manual intervention. The LM series features an expert-level auto-control system with remote/local switching, real-time monitoring of parameters such as temperature, pressure, and vibration. The MTW series includes an intelligent pressure regulation system that automatically compensates for roller wear, ensuring stable operation. These features not only improve efficiency but also enhance safety by preventing abnormal conditions.
Product Recommendations: LM Series Vertical Coal Mill and MTW Series European Trapezium Mill
Based on the criteria above, we strongly recommend the following two products for pulverized coal production:

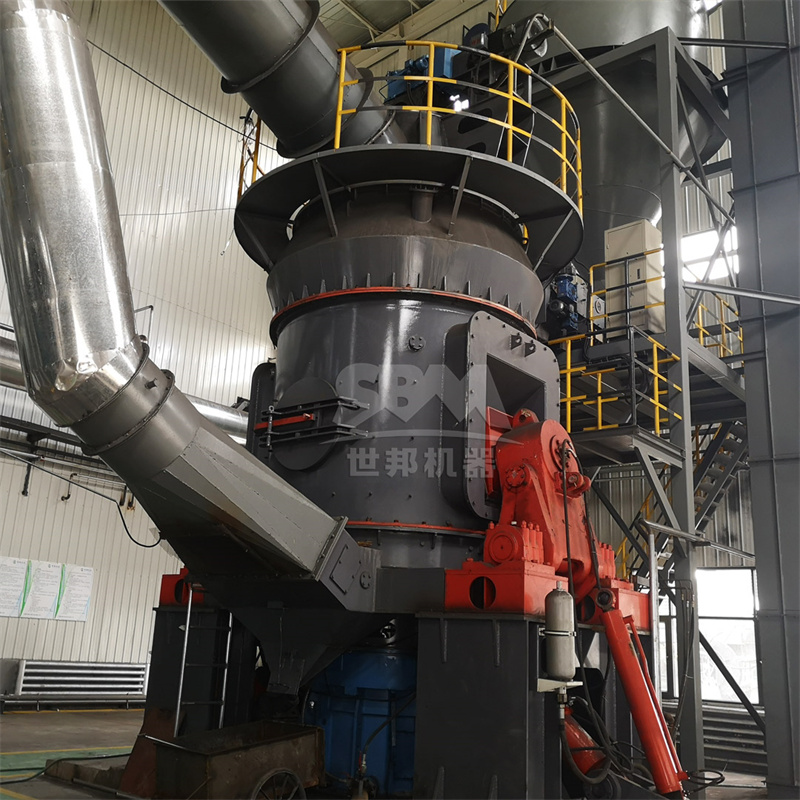

LM Series Vertical Coal Mill
The LM Series Vertical Coal Mill is engineered specifically for coal grinding, with a capacity range of 3-90 t/h and fineness adjustable from 5% to 20% R0.08 (approximately 200 mesh). Its integrated design combines crushing, grinding, and classification, reducing floor space by 50% and infrastructure costs by 40%. The mill’s low operating cost is attributed to the non-contact grinding principle, which extends wear part life and reduces energy consumption by 30-40% compared to ball mills. The LM series is equipped with a dynamic classifier with multi-stage adjustment, ensuring precise product fineness. Furthermore, its environmental performance is outstanding: fully sealed negative pressure operation, dust emission below 20mg/m³, and noise levels under 85dB. The intelligent control system allows for remote monitoring and automatic adjustment, making it ideal for large-scale, continuous coal pulverization in cement and power plants.

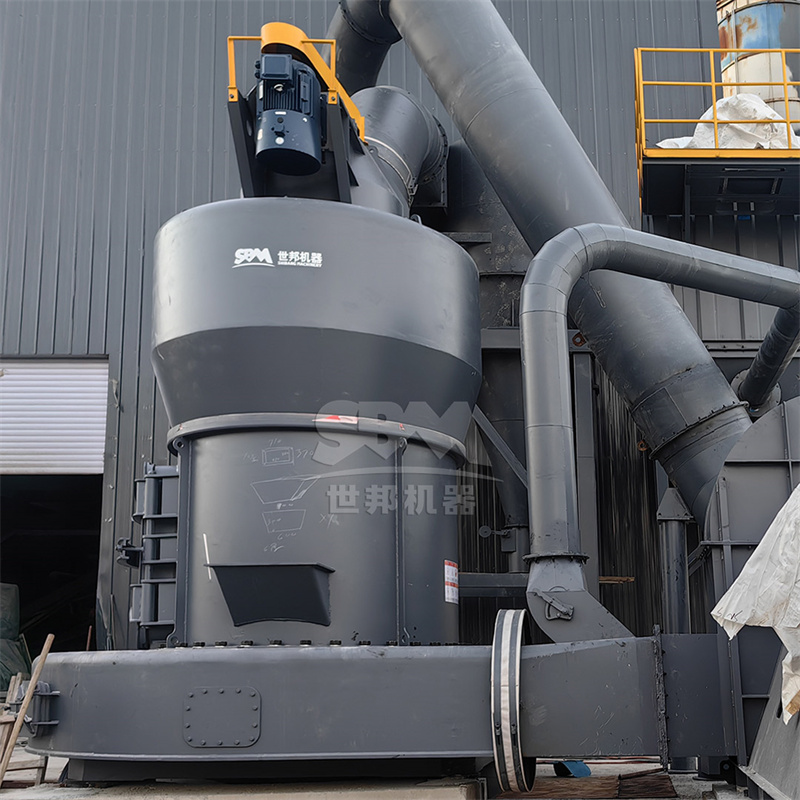

MTW Series European Trapezium Mill
The MTW Series European Trapezium Mill is a versatile mill suitable for coal grinding with capacities from 3 to 45 t/h and fineness from 30 to 325 mesh. Its innovative design features an optimized arc air duct that reduces airflow energy loss, and an integral bevel gear drive that saves space and improves transmission efficiency. The anti-wear shovel blades and curved grinding rollers extend service life, while the wear-resistant volute structure reduces maintenance costs by 30%. The MTW series is also equipped with an independent intellectual property pulse dust removal system, ensuring environmental compliance. For plants requiring medium capacity and finer grinding, the MTW series is a reliable and cost-effective solution.
Case Study: Selecting the Right System for a Cement Plant
Consider a cement plant in Asia that needed to upgrade its coal pulverization system to meet increasing production and stricter emission standards. The plant required 40 t/h of pulverized coal with fineness of 12% R0.09 (approximately 170 mesh) for its rotary kilns. After evaluating options, they selected an LM Series Vertical Coal Mill (Model LM220M) with a capacity of 36-105 t/h and main power of 800kW. The mill was installed outdoors, saving construction costs. The system achieved a specific power consumption of 22 kWh/t, significantly lower than the previous ball mill’s 35 kWh/t. Dust emissions were measured at 15mg/m³, well within regulations. The plant reported a 40% reduction in maintenance costs due to the extended wear life of rollers and liners. This case demonstrates how the right equipment can deliver substantial operational and environmental benefits.
Conclusion
Choosing the right pulverized coal production equipment requires a careful analysis of capacity, fineness, energy efficiency, wear resistance, environmental compliance, and automation. Our LM Series Vertical Coal Mill and MTW Series European Trapezium Mill represent state-of-the-art solutions that address these factors. The LM series excels in high-capacity, energy-efficient, and environmentally friendly coal grinding, while the MTW series offers flexibility and precision for medium-scale applications. By partnering with us, you gain access to decades of engineering expertise, patented technologies, and comprehensive after-sales support. We invite you to consult our technical team to tailor a pulverized coal system that maximizes your plant’s productivity and sustainability.
