Introduction
Kaolin, a naturally occurring clay mineral, has emerged as a cost-effective and environmentally friendly material for water purification. Its high surface area, cation exchange capacity, and ability to adsorb heavy metals, organic pollutants, and suspended solids make it indispensable in modern water treatment plants. However, the performance of kaolin in contaminant removal is directly governed by its particle size distribution and surface characteristics. Consequently, selecting the appropriate milling system is critical for optimizing both purification efficiency and operational costs. This article provides a professional guide to choosing the right kaolin processing equipment, with a focus on achieving precise fineness and high throughput. We will also highlight two of our company’s flagship milling solutions—the SCM Series Ultrafine Mill and the MTW Series European Trapezium Mill—that are specifically engineered to meet the demanding requirements of the water purification industry.
Why Kaolin Fineness Matters for Contaminant Removal
The efficiency of kaolin in adsorbing contaminants is highly dependent on its specific surface area. Finer particles expose more active sites for adsorption, leading to faster kinetics and higher removal capacities for pollutants such as lead, cadmium, arsenic, and humic acids. For advanced water treatment, kaolin is often processed to ultrafine sizes (e.g., 325–2500 mesh or 45–5 μm). At this scale, the material not only exhibits enhanced adsorption but also improves flocculation when used in combination with coagulants. However, achieving such fineness without compromising throughput or incurring excessive energy costs requires advanced milling technology. Traditional ball mills often struggle with energy inefficiency and inconsistent particle size distribution, which can lead to poor water treatment performance. Therefore, the choice of a milling system must balance fineness, capacity, energy consumption, and maintenance requirements.
Key Criteria for Selecting a Kaolin Milling System
When evaluating milling equipment for water purification applications, plant managers and engineers should consider the following criteria:
- Target Fineness and Particle Size Distribution: The system must reliably produce the required mesh size (typically 325–1250 mesh for standard adsorption, and up to 2500 mesh for advanced applications) with a narrow particle size distribution to avoid coarse particles that reduce adsorption efficiency.
- Capacity and Scalability: The mill should match the production scale of the water treatment facility, from small-scale (0.5 t/h) to large-scale (25 t/h or more).
- Energy Efficiency: Water purification plants operate continuously; thus, energy consumption is a major operational cost. Mills with high grinding efficiency and low power draw per ton are preferred.
- Contamination Control: The milling process must avoid introducing impurities (e.g., iron wear from grinding media) that could leach into treated water. Systems with wear-resistant materials and dust collection are essential.
- Maintenance and Uptime: Easy maintenance and long wear-part life reduce downtime and ensure consistent supply of processed kaolin.
- Environmental Compliance: Dust and noise emissions must be controlled to meet workplace and environmental regulations.
Based on these criteria, our company offers two outstanding milling systems that excel in kaolin processing for water purification: the SCM Series Ultrafine Mill and the MTW Series European Trapezium Mill.

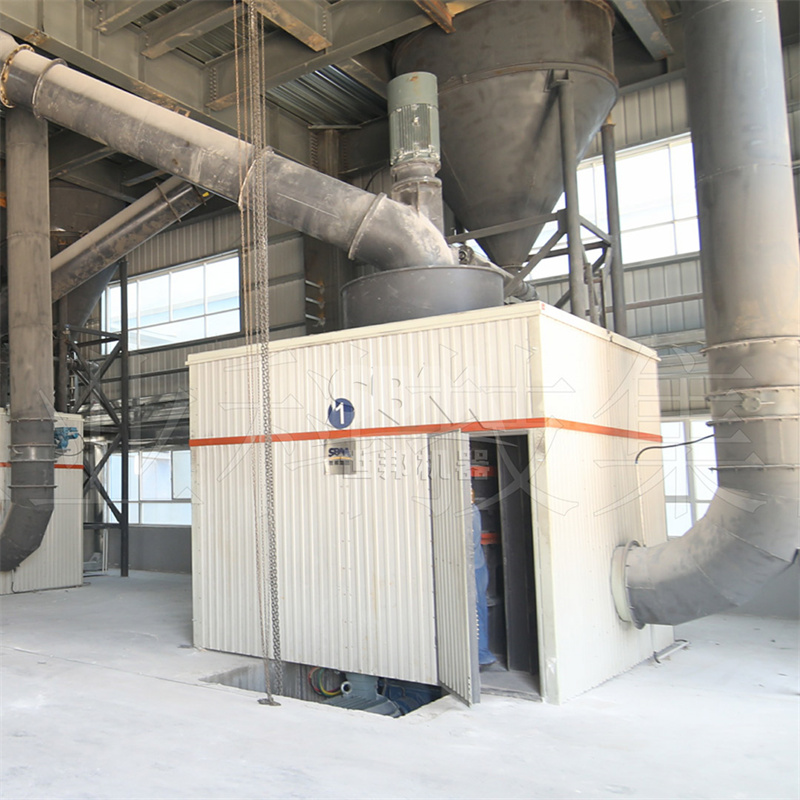

SCM Series Ultrafine Mill: Precision Ultrafine Grinding for Maximum Adsorption
The SCM Series Ultrafine Mill is a state-of-the-art solution designed for producing ultrafine kaolin powder in the range of 325–2500 mesh (45–5 μm). Its technical advantages make it ideal for water purification applications where high surface area is paramount.
Technical Advantages
- High Efficiency & Energy Saving: The SCM mill delivers twice the capacity of a jet mill while consuming 30% less energy. This translates to lower operational costs and a smaller carbon footprint for water treatment facilities.
- High-Precision Classification: A vertical turbine classifier ensures precise particle size cutting, eliminating coarse powder mixing. The result is a uniformly fine product that maximizes adsorption sites.
- Durable Design: Special material rollers and rings extend service life several times over, reducing maintenance frequency. The shaftless screw grinding chamber ensures stable operation even at high loads.
- Eco-friendly & Low Noise: Pulse dust collection efficiency exceeds international standards, and a soundproof room design keeps noise levels low, ensuring a clean and safe working environment.
Working Principle
The main motor drives three layers of grinding rings to rotate. Materials are dispersed into the grinding path by centrifugal force, crushed by roller pressure, and ground layer by layer. Finally, powder collection is completed by a cyclone collector and a pulse dust removal system. This gentle grinding action minimizes contamination and preserves the kaolin’s natural properties.
Models & Specifications
The SCM series offers a range of models to suit different production scales:
- SCM800: Capacity 0.5–4.5 t/h, Main Power 75 kW, Feed Size 0–20 mm, Fineness 325–2500 mesh
- SCM900: Capacity 0.8–6.5 t/h, Main Power 90 kW, Feed Size 0–20 mm, Fineness 325–2500 mesh
- SCM1000: Capacity 1.0–8.5 t/h, Main Power 132 kW, Feed Size 0–20 mm, Fineness 325–2500 mesh
- SCM1250: Capacity 2.5–14 t/h, Main Power 185 kW, Feed Size 0–20 mm, Fineness 325–2500 mesh
- SCM1680: Capacity 5.0–25 t/h, Main Power 315 kW, Feed Size 0–20 mm, Fineness 325–2500 mesh
For water purification plants requiring ultrafine kaolin at moderate to high capacities, the SCM series is an excellent choice. Its ability to produce consistent, high-purity fines ensures optimal contaminant removal.
MTW Series European Trapezium Mill: Versatile and Efficient for Medium-to-Fine Grinding
When the required fineness is in the range of 30–325 mesh (down to 0.038 mm) and higher throughput is needed, the MTW Series European Trapezium Mill is the preferred solution. It combines advanced European grinding technology with robust construction, making it suitable for processing kaolin for both water purification and other industrial applications.
Technical Advantages
- Anti-wear Shovel Design: Combined shovel blades reduce maintenance costs, and the curved design extends grinding roller life, ensuring long-term reliability.
- Optimized Arc Air Duct: Reduces airflow energy loss and improves transmission efficiency. High-strength guard plates protect the air duct working surface from wear.
- Integral Bevel Gear Drive: Transmission efficiency up to 98%, saving space and reducing installation costs.
- Wear-resistant Volute Structure: Non-resistance flow design improves air selection efficiency, and maintenance costs are reduced by 30%.
Working Principle
The main motor drives the grinding rollers to revolve around the central axis while self-rotating to generate centrifugal force. Shovels throw materials between the ring and rollers to form a material layer, achieving efficient crushing through extrusion. The classification system precisely controls the finished product size, ensuring that the kaolin powder meets the requirements for water treatment.
Models & Specifications
The MTW series includes multiple models with capacities from 3 t/h to 45 t/h:
- MTW110: Capacity 3–9 t/h, Main Power 55 kW, Feed Size <30 mm, Fineness 10–325 mesh
- MTW110Z: Capacity 3–10 t/h, Main Power 55 kW, Feed Size <30 mm, Fineness 10–325 mesh
- MTW138Z: Capacity 6–17 t/h, Main Power 90 kW, Feed Size <35 mm, Fineness 10–325 mesh
- MTW175G: Capacity 9.5–25 t/h, Main Power 160 kW, Feed Size <40 mm, Fineness 10–325 mesh
- MTW215G: Capacity 15–45 t/h, Main Power 280 kW, Feed Size <50 mm, Fineness 10–325 mesh
- MRN158: Capacity 7–21 t/h, Main Power 132 kW, Feed Size <40 mm, Fineness 10–325 mesh
- MRN198: Capacity 12–33 t/h, Main Power 220 kW, Feed Size <45 mm, Fineness 10–325 mesh
- MRN218: Capacity 15–45 t/h, Main Power 280 kW, Feed Size <50 mm, Fineness 10–325 mesh
For water purification plants that require a balance between fine grinding and high capacity, the MTW series offers a reliable and energy-efficient solution. Its patented technologies, including an internal suction oil lubrication system and internationally advanced pulse dust removal, ensure clean operation and long service life.
Comparative Selection Guide
To assist in selecting the right milling system, consider the following guidelines:
- Choose SCM Series if: Your water purification process demands ultrafine kaolin (325–2500 mesh) for maximum adsorption of heavy metals and organic micropollutants, and you require high precision with minimal coarse particles. The SCM series is particularly suitable for advanced treatment stages where surface area is critical.
- Choose MTW Series if: Your application requires medium-to-fine grinding (30–325 mesh) at higher throughput capacities (up to 45 t/h), and you value versatility and low maintenance costs. The MTW series is ideal for primary or secondary treatment stages where both adsorption and cost-efficiency are important.
Both systems are engineered with environmental compliance in mind, featuring pulse dust collection and noise reduction, ensuring that your kaolin processing aligns with sustainable water treatment practices.
Conclusion
Selecting the right milling system for kaolin processing is a strategic decision that directly impacts the efficiency of contaminant removal in water purification. By focusing on fineness requirements, capacity, energy efficiency, and maintenance, plant operators can optimize their operations. Our company’s SCM Series Ultrafine Mill and MTW Series European Trapezium Mill represent the pinnacle of grinding technology, offering reliable, high-performance solutions for producing high-quality kaolin for water treatment. Whether you need ultrafine precision or high-capacity versatility, we have the expertise and equipment to meet your needs. For more information or to discuss your specific requirements, please contact our technical team today.
