Introduction
Quicklime (calcium oxide, CaO) is one of the most widely used industrial minerals, with applications ranging from steelmaking and water treatment to construction and agriculture. The production of high-quality quicklime powder requires precise grinding technology that can handle the material’s abrasive nature while delivering consistent particle size distribution. Choosing the right grinding mill for your lime plant is a critical decision that directly impacts product quality, operational efficiency, and profitability.
This comprehensive guide examines the key factors to consider when selecting grinding equipment for quicklime powder production and introduces two industry-leading solutions: the SCM Series Ultrafine Mill and the MTW Series European Trapezium Mill.
Understanding Quicklime Grinding Requirements
Quicklime presents unique challenges for grinding operations. Its hardness (Mohs 3-4) and abrasive characteristics demand equipment with wear-resistant components. Additionally, the material’s reactivity means that excessive heat generation during grinding can affect product quality. The desired fineness varies by application:
- Construction applications: 80-200 mesh
- Chemical processing: 200-325 mesh
- Specialty applications: 325-2500 mesh
Understanding your target fineness and capacity requirements is the first step in selecting appropriate equipment.
Key Factors in Grinding Mill Selection
1. Capacity Requirements
Your plant’s production targets determine the required mill capacity. Small operations may need 3-10 tons per hour, while large industrial facilities may require 50-250 tons per hour. Oversizing equipment wastes capital and energy, while undersizing limits growth potential.
2. Fineness Specifications
Different applications demand different particle sizes. Fine grinding (below 45μm) requires specialized equipment like ultrafine mills, while coarse grinding (above 100μm) can utilize more straightforward mill designs.
3. Energy Efficiency
Grinding is energy-intensive, often representing 30-50% of total production costs. Modern mills with optimized grinding mechanisms can reduce energy consumption by 30-40% compared to traditional ball mills.
4. Wear Resistance
Quicklime’s abrasive nature accelerates wear on grinding components. Equipment featuring high-chrome alloys, ceramic liners, or special material rollers will have significantly longer service life.
5. Environmental Compliance
Dust emissions and noise levels must meet increasingly strict regulations. Look for mills with integrated dust collection systems and soundproofing features.
6. Maintenance Accessibility
Downtime for maintenance directly impacts profitability. Modular designs with quick-change components minimize production interruptions.

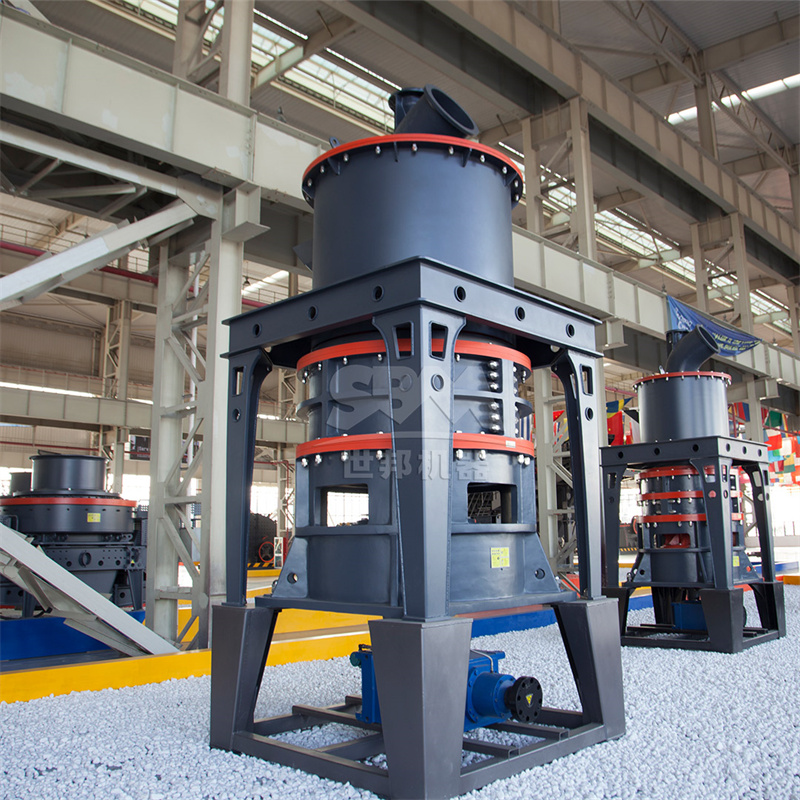

Recommended Solution 1: SCM Series Ultrafine Mill
For lime plants requiring ultrafine quicklime powder (325-2500 mesh), the SCM Series Ultrafine Mill represents the optimal choice. This advanced equipment delivers exceptional performance for high-value applications.
Outstanding Technical Advantages
High Efficiency and Energy Saving: The SCM mill achieves twice the capacity of jet mills while consuming 30% less energy. Its intelligent control system features automatic finished product granularity feedback, ensuring consistent output quality.
High-Precision Classification: The vertical turbine classifier provides precise particle size cutting without coarse powder mixing, guaranteeing uniform finished products.
Durable Construction: Special material rollers and rings extend service life several times over compared to conventional components. The shaftless screw grinding chamber ensures stable operation even under demanding conditions.
Eco-friendly Operation: Pulse dust collection efficiency exceeds international standards, while soundproof room design keeps noise levels well within regulatory limits.
Working Principle
The main motor drives three layers of grinding rings to rotate. Materials are dispersed into the grinding path by centrifugal force, crushed by roller pressure, and ground layer by layer. Finally, powder collection is completed by a cyclone collector and a pulse dust removal system.
Available Models
- SCM800: Capacity 0.5-4.5 t/h | Main Power 75kW
- SCM900: Capacity 0.8-6.5 t/h | Main Power 90kW
- SCM1000: Capacity 1.0-8.5 t/h | Main Power 132kW
- SCM1250: Capacity 2.5-14 t/h | Main Power 185kW
- SCM1680: Capacity 5.0-25 t/h | Main Power 315kW
All models accept input sizes up to 20mm and deliver output fineness from 325 to 2500 mesh.
Recommended Solution 2: MTW Series European Trapezium Mill
For lime plants requiring medium to fine grinding (30-325 mesh) with higher capacity requirements, the MTW Series European Trapezium Mill offers an excellent balance of performance and efficiency.
Outstanding Technical Advantages
Anti-wear Shovel Design: Combined shovel blades reduce maintenance costs, while the curved design extends grinding roller life significantly.
Optimized Arc Air Duct: This design reduces airflow energy loss and improves transmission efficiency. High-strength guard plates protect the air duct working surface from abrasion.
Integral Bevel Gear Drive: Transmission efficiency reaches up to 98%, saving space and reducing installation costs compared to conventional drive systems.
Wear-resistant Volute Structure: The non-resistance flow design improves air selection efficiency while reducing maintenance costs by 30%.
Working Principle
The main motor drives the grinding rollers to revolve around the central axis while self-rotating to generate centrifugal force. Shovels throw materials between the ring and rollers to form a material layer, achieving efficient crushing through extrusion. The classification system precisely controls the finished product size.
Available Models
- MTW110: Capacity 3-9 t/h | Main Power 55kW
- MTW138Z: Capacity 6-17 t/h | Main Power 90kW
- MTW175G: Capacity 9.5-25 t/h | Main Power 160kW
- MTW215G: Capacity 15-45 t/h | Main Power 280kW
- MRN198: Capacity 12-33 t/h | Main Power 220kW
- MRN218: Capacity 15-45 t/h | Main Power 280kW
These models accept input sizes up to 50mm and deliver output fineness from 10 to 325 mesh.
Comparing the Options: Which Mill Suits Your Lime Plant?
Choose SCM Series When:
- Your target fineness is 325 mesh or finer
- You produce specialty quicklime products for high-value applications
- Energy efficiency and precise particle size control are priorities
- Your capacity requirement is between 0.5 and 25 tons per hour
Choose MTW Series When:
- Your target fineness is between 30 and 325 mesh
- You require higher production capacity (up to 45 tons per hour)
- You need a robust, proven design with lower initial investment
- Your feed material size is up to 50mm
Additional Equipment Considerations

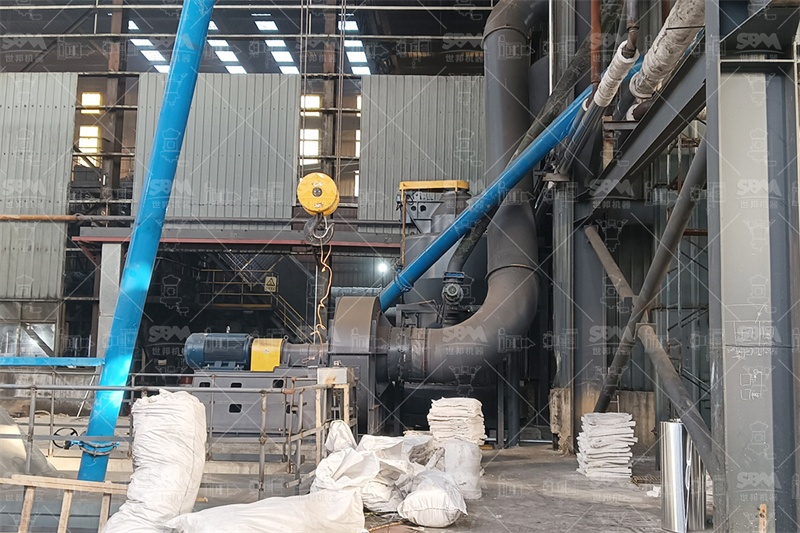

A complete quicklime powder production line requires more than just a grinding mill. Consider these complementary equipment options:
- Hammer Mills: For primary crushing of quicklime lumps (0-40mm feed, 0-3mm output)
- LM Series Vertical Roller Mills: For high-capacity applications requiring 3-250 tons per hour
- LUM Ultrafine Vertical Roller Mills: For ultrafine grinding with PLC automation
- Ball Mills: For applications requiring 0.074-0.8mm output with capacities up to 450 tons per hour
Conclusion
Selecting the right grinding mill for your quicklime powder production is a strategic decision that affects every aspect of your operation. The SCM Series Ultrafine Mill and MTW Series European Trapezium Mill represent two excellent options covering different fineness and capacity requirements.
For ultrafine applications demanding precise particle size control and maximum energy efficiency, the SCM Series is unmatched. For medium-fine grinding with higher capacity requirements, the MTW Series delivers reliable performance with lower operating costs.
We recommend consulting with our technical team to analyze your specific requirements, including feed material characteristics, target fineness, capacity needs, and site conditions. Our engineers can provide customized solutions that optimize your investment and ensure long-term operational success.
Contact us today to discuss how our advanced grinding technology can transform your quicklime powder production operations.
